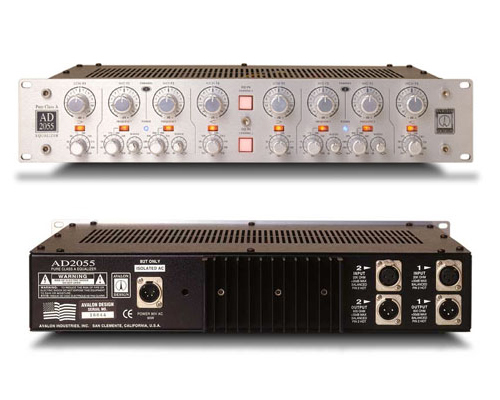

The AD2055 combines 100% discrete, pure class A signal amplifiers with state-of- the-art passive and active filter topologies. The AD2055's unique circuitry delivers very high resolution transient detail at the operational extremes of real world equalization demands. The AD2055 auto-bias DC servo loop control eliminates the need for all interstage capacitor coupling. The AD2055 breathes life into all musical performances!

AD2055 FEATURES
Pure Class A, 100% discrete design
Smooth musical detail and sonic excellence
Minimum audio signal path
Dual mono operation
Transparent active and passive filter design
High headroom +30dB Very low noise -94dB
Fully balanced inputs and outputs
DC coupled, no transformers in audio path
Switched frequencies in high and low bands
Mid bands use X10 frequency for extended range
Wide bandwidth -3dB 1Hz to 450kHz
Low distortion less than 0.5% THD and IMD
All signal routing with sealed silver relays Conductive plastic potentiometers for low noise
External 150W toroidal power supply 100% discrete power supplies for audio path
Long lasting, stainless steel hardware

SONIC EXCELLENCE
The Avalon AD2055 Pure Class A music equalizer is the most powerful, low noise parametric equalizer available today. Designed to optimize absolute signal integrity and musical performance, the AD2055 combines the best of active and passive filter topologies with sonic excellence unequaled by lesser designs. The AD2055 is the perfect solution for two buss music-program equalization, special instrument EQ and FX applications and ultra high performance mastering studio's.

Features include state-of-the-art, balanced 100% discrete, Pure Class A signal amplifiers, practical user features and rugged hardware designed to deliver true high performance audio for many years.

PASSIVE-ACTIVE FILTER DESIGN
Avalon equalizers feature the unique combination of both active and passive filter EQ designs. This special combination enables the AD2055 to deliver high speed transient detail at the operational extremes of real-world equalization demands. The passive high and low bands offer alternate musical tone range to the full function active parametric mid bands. Passive equalizers have long been a favorite with music lovers around the world. Full bodied, powerful (up to +/-32dB, 64dB range !) and sweet frequency selections are the benefits of the passive high-low EQ bands. The full bandwidth twin mid bands provide variable frequency selection (X10 frequency multipliers for very wide range), variable Q (width) and amplitude control.

MINIMUM SIGNAL PATH DESIGN
Avalon's advanced true symmetry design offers high-voltage, large headroom, extended bandwidth and very low noise. The use of 100% discrete, Pure Class A signal amplifiers give the serious music professional unlimited sonic character and a natural harmonic detail that enhances the program material and becomes one with the music itself. The Avalon AD2055 breathes life!

AD2055 SPECIFICATIONS
Circuit Topology
High-voltage 100% discrete, balanced and symmetrical Class A
Output Gain Range
Unity Gain
Maximum Input Level
+30dB balanced XLR pin 2 hot
Maximum Output Level
+32dB balanced 600 ohms, DC coupled, high-current discrete Class A
Input / Output Type
XLR type, pin 2 hot balanced
Noise 20kHz Unweighted -94dB (EQ in)
Distortion THD, IMD
0.5% (typical 0.05% at +6dB 1kHz)
Frequency Response -3dB
1Hz to 450kHz (input band limited)
Equalizer Type
Passive high and low bands plus two fully parametric mid bands
Bypass Hard-wire relay bypass for equalizer in-out
Low Band F1
Passive, amplitude to -32dB to +32dB shelf or peak-dip curve
F1 Frequency Range
Switched 10 position 18Hz, 25, 30, 50, 72, 100, 150, 215, 300, 450Hz
Mid Band F2
Active, amplitude to -16dB to +16dB peak-dip curve
F2 Frequency Range
Variable 35Hz to 450Hz (x10) 350Hz to 4k5Hz, Q (width) 0.3 to 3.0
Mid Band F3
Active, amplitude to -16dB to +16dB peak-dip curve
F3 Frequency Range
Variable 160Hz to 2k0Hz (x10) 1k6Hz to 20kHz, Q (width) 0.3 to 3.0
High Band F4
Passive, amplitude to -26dB to +26dB shelf or peak-dip curve
F4 Frequency Range
Switched 10 position 1k5Hz, 2k5, 3k5, 5k, 7k2, 10k, 12k5, 15k, 20k, 25kHz
AC-DC Power
External AC supply, 150w toroidal transformer, 4 pin cable 90v isolated,
(B2T Power Supply Included) 100-240v selectable 50/60Hz, 150w max
Dimensions
19 x 3.5 x 12 in (482 x 88 x 305mm)
Shipping weight
30lbs (13.6 kg)
