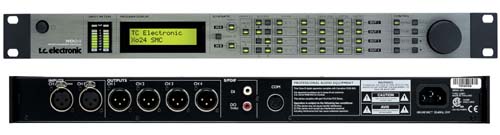

The TC Electronic XO24 digital speaker management controller is a compact and powerful DSP based audio processing unit that will improve the quality of your audio. It’s so easy to use that you’ll be up and running in an instant and you’ll always know where you are – it’s GPS for your audio.

Ideally suited for fixed and live applications, the XO24 is loaded with features designed to optimize your loudspeaker system, all accessible via the “one-click” architecture of the front panel. Incorporating the unique routing engine, the XO24 can be configured as a 2-, 3- or 4 –way speaker management system.

In addition each input offers a 4 band parametric EQ that can be used to compensate for the ill effects of poor room acoustics. Bands 1 and 4 can be set for a LF & HF shelving response. Four additional bands of parametric EQ can be found on each output as well, providing a precision tool for final speaker tuning.

Limiting, independent delay lines and the flexibility of selecting infinitely variable x-overs on each channel are staple features, and behind it all lays renowned TC Electronic quality. Whether it's channel distribution, room equalization or speaker management, the XO24 combines the functions of multiple products in a 1 RU configuration.

* Intuitive user interface based on signal-flow.
* 4 band parametric EQ per input for room compensation. Bands 1 & 4 can be set for LF & HF shelving response.
* Route any input to any output – 2 in, 4 out. The signals present on Inputs A & B can be routed to any of the four Output channels.
* 2, 3, & 4-way crossover (Butterworth, Bessel and Linkwitz-Riley type filters) on all outs. Variable high and low pass filters for each output can be set with a choice of classic filters. Independent control over high pass and low pass functions allow asymmetric crossover functions to be used.
* 4 band parametric EQ per output for speaker tuning.
* Independent speaker alignment delay (200 ms per channel) on all outs.
* Independent digital limiter on all outs, featuring a wide range of control over Attack, Release & Threshold parameters.
* Factory and user presets.

Tech. Specs:
Inputs:
Connectors - 3 pin XLR (pin 2 hot)
Impedance: - Balanced: 21 kOhm, Unbalanced: > 10 kOhm
Max. Input Level - 24 dBu
Sensitivity Range @ full scale - 0 dBu to 24 dBu
Connectors - 3 pin XLR (pin 2 hot)
Impedance - 40 Ohm
Max. Output Level: - Balanced: 20 dBu / Unbalanced: 14 dBu
Output Ranges: - Balanced: 20/14/8/2 dBu / Unbalanced: 14/8/2 dBu
Max. Load - 1200 Ohm @ Output Level > 14 dBu, 600 Ohm @ Output local < 14 dBu
Performance:
Conversion - 24 bit (1 bit, 128 times oversampling)
Conversion Delay alone - 1.38 ms
Dynamic Range (#) - Typ. > 102 dB, 20 Hz – 20 kHz
THD - Typ. < -90 dB (0.0032%) @1 kHz, BW: 20 - 20 kHz
Frequency Response - 20Hz to 20kHz: +0/-0.7 dB
Crosstalk - Typ. < -95 dB, BW: 20 - 20 kHz
Other: EMC
EN-55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B
Safety:
IEC 60065, EN 60065, UL6500, and CSA E60065
CSA File#108093
Environment:
Operating Temperature: 32 F TO 122 F (0 C to 50 C)
Storage Temperature: -22 F TO 167 F (-30 C to 70 C)
Humidity: Max 90% non-condensing
Control Interface: Finish
Anodized aluminum front. Plated and painted steel chassis
Display Dimensions: 2x16 character back light LCD
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption: < 15W
Warranty: 1 year warranty
