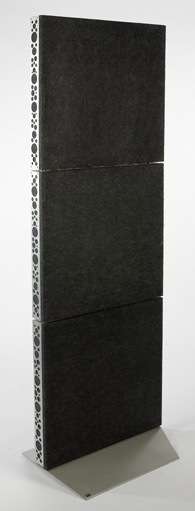

Ghost 'Gobo Stand' - this is a 12Kg, solid steel bass plate, into which 6 separate 2 foot (600mm) rods can be screwed. It provides an extremely stable base for using the Ghost 'Block' products as Gobos for isolation, acoustic screens for separation, or where flexibility is needed in room treatment, for example to temporarily treat (acoustically obscure) a room window while mixing or tracking which is causing unwanted reflections.
It's simple, but highly effective design, lends a degree of flexibility to Ghost room treatments that no other off the shelf Acoustic brand can match. It allows the 'Block' product to be used in a variety of environments, (not just recording studios), from live performance in orchestral context, to temporary treatment of rehearsal spaces for gigging bands.
Being modular, walls of varying heights can be erected, for simple guitar cab gobos, full drum kit surrounds (bases have angled cutaways to allow for 'curved' walled areas to be constructed), or even a full vocal wall up to 6 feet (1800mm) high.
The beauty of it is that all this can be done with the SAME 'Block' product which is mounted on your studio walls for room treatment when mixing! You simply remove the 'Blocks' from their 'Easy Mount' frames, and slide them onto the 'Gobo Stand' for tracking etc. Very quick, very easy and an all in one solution which means you don't have to spend money twice on less effective foam systems which have to be permanently wall mounted, or bought as a separate freestanding product.
The Ghost 'Gobo Stand' is also easy to store, quickly flat-packing down to a height of only 65mm, so it can be kept under your console, or against a wall without getting in the way. The absorbers you use with it simply go back in their positions on the walls of your studio!
Frequency (Hz) |
Sound Absorption Content A |
100 |
0.10 |
125 |
0.19 |
160 |
0.26 |
200 |
0.30 |
250 |
0.32 |
315 |
0.41 |
400 |
0.41 |
500 |
0.41 |
630 |
0.44 |
800 |
0.42 |
1000 |
0.43 |
1250 |
0.41 |
1600 |
0.41 |
2000 |
0.41 |
2500 |
0.40 |
3150 |
0.39 |
4000 |
0.38 |
5000 |
0.38 |
Product Dimensions
|
Width (mm) |
Height (mm) |
Depth (mm) |
Weight (Kg) |
'Block' |
615 |
615 |
85 |
4.45 |
'Big Block' |
1230 |
615 |
85 |
8.30 |
Wedge |
615 |
615 |
85 - 140 |
5.70 |
Corner Trap |
615 |
615 |
190 |
11.90 |
Gobo Stand Plate |
618 |
65 |
446 |
11.90 |
Shipping Dimensions
|
Length (mm) |
Width (mm) |
Height (mm) |
Weight (Kg) |
Carton Quantity |
'Block' |
665 |
670 |
255 |
12.30 |
2 |
'Big Block' |
1275 |
670 |
125 |
10.75 |
1 |
Wedge |
680 |
670 |
295 |
15.00 |
2 |
Corner Trap |
685 |
670 |
220 |
13.00 |
1 |
Gobo Stand Plate |
650 |
470 |
85 |
13.50 |
1 |
