Introduction

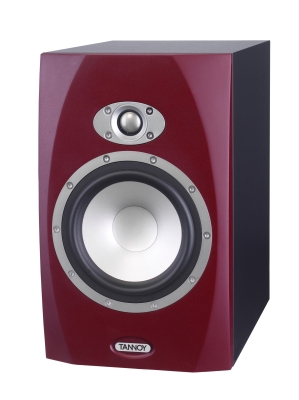

The original Reveal monitor was renowned for its rigid cabinet and substantial baffle. The new models have cabinets that have been further braced and refined, providing the most rigid platform possible for the new driver designs. Securely attached to the solid baffle, with no less than 10 hex socket countersunk-head screws, an all-new bass driver performs with significantly reduced distortion.
Main Features
For the mid / LF driver magnetic circuit flux control rings and extensive Klippell™ based symmetry analysis has made performance improvement possible, so this all new driver design provides tight, punchy and controlled bass response with a clean and open mid range for superb vocal intelligibility.
Open and detailed reproduction of mid-high frequencies is further enhanced by inclusion of a WideBand™ high frequency unit to improve and extend the high frequency phase response. This ensures increased tonal accuracy of individual instruments in the reproduction process - a mix critical factor allowing the best EQ and placement decisions to be made.
Specifications
Reveal 6 |
PERFORMANCE |
Frequency Response (1) |
63Hz to 51kHz |
Recommended Amplifier Power |
50 to 100W @ 8 Ohms |
Power Handling Average RMS (2) |
50W |
Power Handling Programme RMS |
100W |
Nominal Impedance |
6 Ohms |
Sensitivity (3) |
90dB for 1W at 1m |
Distortion |
<0.6% |
Crossover Frequency |
2.9kHz |
Dispersion |
(@-6dB) 90 degrees |
DRIVE UNITS |
LF/MID |
165mm (6.50”) multi fibre paper pulp cone |
WideBand HF |
25mm (1.00”) titanium dome with neodymium magnet system |
Shielded |
Yes |
CABINET |
|
Type |
Optimised bass-reflex loaded |
Construction |
MDF cabinet and front baffle Tongue and groove front and back |
Finish |
Grey cabinet with maroon painted baffle |
Cabinet dimensions (HxWxD) |
340mm x 210mm x 319mm (13.38 x 8.27 x 12.56”) |
Shipping dimensions (HxWxD) |
622mm x 287mm x 440mm (24.56 x 11.30 x 17.32”) |
Shipping weight |
16 kg (35.3lbs) |
(3) Average over specified bandwidth for half space environment. |
