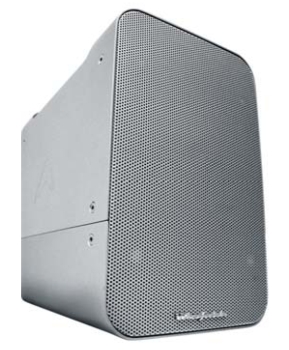

DS5A Active Nearfield Reference Monitor

The DS5A Active Nearfield Reference Monitor is the latest addition to Wharfedale Pro’s highly successful line of studio monitors. Aimed at the Digital Audio Workstation (DAW) user, the DS5A’s unique industrial design offers the perfect compliment to the computer based recording and production environments of today. Look beyond the DS5A’s stunning aesthetic though and you’ll find a capable monitor that is at home in professional and home recording studios alike.

Actively bi-amped using an electronic crossover, the DS5A is built around a driver compliment consisting of a 1” (25mm) soft dome high frequency driver and a 5” woofer. The woofer uses a sophisticated Kevlar® cone material specially formed to give exceptional rigidity yet low mass. The extreme strength of Kevlar® gives excellent cone stiffness for long excursions under very high drive levels, yet at the same time its low mass means the cone can remain truly pistonic at extended frequencies.
Fitted with a range of input connectors and a Half Space LF filter, the DS5A is capable of integrating into nearly any studio environment. Magnetically shielded drivers allow the speaker to be positioned close to CRT monitors and displays without effect. Discrete indicators showing power status and clip are mounted to the front of the speaker.

Features:
• Active 2 way near field studio reference monitor
• 5” (127mm) magnetically shielded KEVLAR Cone Woofer
• 1” (25mm) Soft Dome Tweeter
• 60W LF + 40W HF for bi-amplifier package for studio application
• 50Hz – 24kHz (+/-3dB)
• Input 1: XLR/1/4” Balanced Combo Jack
• Input 2: Unbalanced RCA Phono Jack


Features of the DS5A Active monitor

Frequency Response 50Hz-24kHz
Low Frequency Driver 5” (127mm) magnetically shielded KEVLAR Cone Woofer
High Frequency Driver 1” (25mm) Soft Dome Tweeter
Crossover frequency 2.0kHz
Input connectors Input 1: XLR/1/4” Balanced Combo Jack
Input 2: Unbalanced RCA Phono Jack
Output SPL (from peak power) 106dB
IEC weighted noise @ 1m
Low Frequency Power 60W
High Frequency Power 40W
Input sensitivity 0.775v RMS (0dBu)
Amplifier system distortion 0.1% @ 50W
Signal to noise ratio 100dB
Voltage operating range at:
230V setting 200V-250V AC
115V setting 100V- 130V AC
Power Consumption:
Idle 22W
Full output 130W
Finish Silver
Dimensions (HxWxD) 269 x 170 x 300mm
10.6 x 6.7 x 11.8 inches
Weight Net Each 7.6 kg / 16.7 lbs

(cijena za par)

cijena: 3047,63 kn
