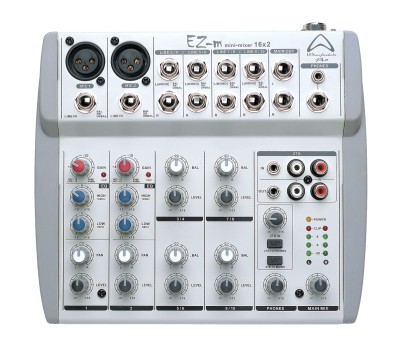

EZ-m 16x2 mini mixer is the solution for those seeking high quality, low-cost ultra-compact audio mixers for small studio and live applications. With 16-channel model available to suit a variety of applications, from desktop recording and AV production, to smaller live gigs, EZ-m 16x2 Mixer offer no-nonsense mixing platforms-anywhere quality sound is required. The layout of controls is intelligent and makes sense, so first time users can be up and mixing in no time. Features like CD and line-level I/O, accurate 4-segment meters-as well 1/8” and 1/4” headphone outputs-provided added mix and monitor flexibility. As your audio setup expands, the EZ-m 10x2 Series continue to offer incredible utility as sub and monitor mixes..
SPECIFICATIONS |
MODEL |
EZ-M 16x2 |
Maximum Output Level (1%T.H.D. @ 1kHz) |
+22dBu over 130mw (headphone) @ 32 ohms |
THD+N% |
<0.01% @ +15dBu |
Frequency Response |
20Hz-20kHz +0/-1dB |
HUM AND NOISE |
-127dB Mic Pre Equivalent Input Noise -90dBu Residual Noise |
Maximum Input Levels |
Mic In: '+10dBu Line In: '+20dBu 2TK In: '+20dBu |
Mono Input Channel Gain |
50dB Variable (-60~-10dB) (-40dB~+10dB) |
Input Channel EQ |
High (+/- 15dB) 12kHz Shelving Low (+/_15dB) 80Hz Shelving |
Level Meters: |
4-Segment LEDx2 (output of '+4dBu = MAIN L/R |
Clip Indicator |
Turns on approx +16dBu |
AC Power options |
AC100V/120V/230V/240V, 50 Hz/60Hz |
Dimensions |
311mm x 77mm x2 26mm / 12.24 x 3.03" x 3.16" " |
WEIGHT |
1.81kg / 3.98 lbs | |
|
