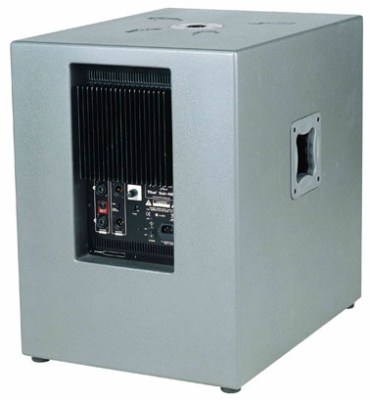

The new Wharfedale Pro Titan™ Sub-A15, a powerful active subwoofer system designed to produce high quality audio in any performance application. The Titan™ Sub-A15 combines the newest technologies, materials and design topology to ensure absolute accuracy and high output.
The TITAN™ Sub-A15 is powerful 15 inch band pass active subwoofer. A built-in 400 watt (continuous) 600 watt (peak) amplifier conveniently accepts stereo or mono line level inputs via dual, balanced, XLR-¼” “combo” connectors as well as a unique single channel 4Ω speaker level input via a ¼” phone jack which allows for use with a standard sound reinforcement amplifier (when the internal amplifier is not used).
A custom designed, down-firing, aluminium cast frame 15" woofer, with a 3" voice coil, is utilized as the heart of the Titan™ Sub-A15's complementary low frequency enhancement system. Integral signal processing includes a dynamic AGC (Automatic Gain Control) circuit, a stereo crossover and signal limiting for the prevention of a distorted signal to the internal amplifier. A convenient and an essential PHASE switch is included to allow for proper subwoofer signal polarity to be selected.
A pair of balanced XLR male output connections, with switchable “High-Pass” mode are available for the stereo line level outputs and may be used to pass through mono or stereo signals from the inputs to another system or to send a high-pass, line-level stereo signal to a pair of powered, full-range speakers such as the popular Wharfedale Pro Titan™ ACTIVE models.
1. Pole mount socket The top of the Titan™ Sub-A15 provides a convenient built in pole mount socket for easy mounting of a standard 35mm diameter speaker pole (such as the Wharfedale Pro SP-1) for easy top-side mounting of a mid/high passive or active speaker.
2. Integral Carry Handle The Titan™ Sub-A15 has two rubber over-moulded carry handles (one on each side) for easy transportation of the enclosure.
3. Rubber Feet There are four skid-resistant screw mounted rubber feet on the bottom of the Titan™ Sub-A15.
4. Ports There are two ports on front of the Titan™ Sub-A15 that are reflex tuned to provide enhanced low frequency response from the enclosure.
Applications: Because of its functional cabinet design, the Titan™ Sub-A15 is versatile and applicable in a variety of configurations. At home indoors or outdoors, on stage, in clubs, at rehearsals, in theaters and houses of worship, the Titan™ Sub-A15 will provide the high standards of low frequency audio reproduction that you require
SPECIFICATIONS |
MODEL |
TITAN Sub-A15
|
System type |
Band-pass subwoofer |
Frequency response +/- 3db |
45-150Hz |
Enclosure Material |
18mm Plywood |
Enclosure Colour |
Grey |
Frame Material |
Die-cast aluminium frame |
Size (mm/inches) |
404 / 15" |
Coil Size (mm/inches) |
75 / 3" |
Impedance |
4 Ω
|
Speaker Pole Adapter |
Yes |
Inputs A & B Type / Connection |
Balanced Line Level inputs via two combo connectors |
Outputs A & B Type / Connection |
Balanced Line Level inputs via two XLR-M connectors |
Input Sensitivity |
0.775V |
High Pass Frequency Selection |
100Hz |
Phase Switch Selection |
00 / 1800 |
Speaker Level Input Impedance |
1/4" TS Phone input |
Speaker Level Input Connection |
4 Ω
|
Amplifier Power |
|
Continuous |
400W |
Peak |
600W |
Protection Type |
Dynamic AGC |
Power On Indicator |
LED |
Dimensions (mm/inches) |
|
Height |
630.0 / 24.8" |
Width |
478.0 / 18.8" |
Depth |
640.0 / 25.2" |
Weight (Net) kg / lbs |
45.48 / 100.0 |
Weight (Gross) kg / lbs |
50.48 / 110.5 |
| akcija: 3300,11 kn
|
