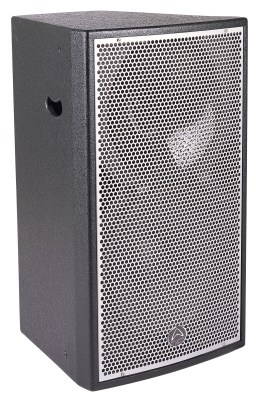

MX Series Two Way Loudspeakers:
All MX Series two-way loudspeaker enclosures are trapezoidal shaped with M 10 rigging points for easy array setups. Constructed using 18mm birch plywood, the MX Series is meticulously designed for superior acoustics and durability.
The integrated carrying handles make for easy transport. Hookup is simple with integrated industry standard Speakon™ connectors. Cast frame and oversize LF voice coils mean sustained high power output capacity and minimal power compression.
Conical Waveguide Technology coupled with a 50mm titanium compression driver provide a dispersion pattern of 75° x 75° allowing for even coverage, especially in the crucial vocal ranges.
|
SPECIFICATIONS |
| MODEL |
MX-115 |
| GENERAL INFO |
|
| System type |
15” 2-way passive |
| Frequency response +/- 3db |
50-20kHz |
| Sensitivity (db 1w@1m) |
98dB |
| System impedance |
8 ohms |
| System FB |
50Hz |
| Maximum SPL Peak dB |
131dB |
| POWER HANDLING (Watts) |
|
| Continous RMS |
500 |
| Program |
1000 |
| Peak |
2000 |
| LF DRIVER |
|
| Lf driver size mm / inches |
1x15” |
| HF SECTION |
|
| Hf voice coil size |
50mm /2" |
| Hf exit size mm / inches |
35mm / 1.4" |
| Hf diaphragm material |
Titanium |
| Horn dispersion (H x V) |
75 x 75 |
| Hf horn shape |
Conical |
| CROSSOVER SECTION |
|
| Crossover Frequency / Filter |
1.9Khz or Bi-amp switchable |
| Hf driver protection |
Bulb |
| IN / OUT PANEL (speaker Level) |
|
| Input connector |
Speakon ™ NL4 x2 |
| PHYSICAL FEATURES |
|
| Handle quantity |
2 |
| Suspenison points |
14 x M10 Inserts |
| Grille |
1.5mm Full steel (silver) |
| Stand adapter - BOTTOM |
Yes |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
768mm / 30.23" |
| Width Front / Rear / mm / ins |
458-254mm /28.03- 10" |
| Depth ( mm / ins ) |
450mm / 17.74" |
| Net weight ( kg / lbs ) |
36.9kg / 81.18 |
| Gross weight ( kg / lbs ) |
42.8kg / 94.16 | | (cijena za komad)
|
