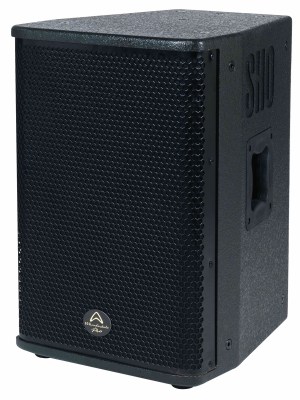

SH1294 Overview
The SH1294 is a high power, 2-way loudspeaker system, designed for sound reinforcement applications. The system is comprised of a 12” low frequency driver and a large-format, high frequency compression driver, coupled to a constant-directivity 90° x 40° horn. Combining 96 dB sensitivity with 1000 Watts (continuous) power handling, the SH1294 delivers sound pressure levels well beyond those typical of systems its size.
The SH1294 is designed to be easily pole mounted on a speaker stand or above an SHO Series subwoofer, using the Wharfedale Pro SP Series pole mount accessory. The rugged steel pole mount accessory, which is finished in black paint, is 34 5/8 inches (880 mm) tall and has a diameter of 1 3/8 inches.
Additionally, the SH1294 is fitted with a total of twenty two M10 threaded inserts to facilitate flying the cabinet, where needed.
|
SPECIFICATIONS |
| MODEL |
SH1294 |
| GENERAL INFO |
|
| System type |
12” 2-way passive |
| Frequency response +/- 3db |
60Hz-20kHz |
| Sensitivity (db 1w@1m) |
96dB |
| System impedance |
8 ohms |
| Maximum SPL Peak dB |
129dB |
| POWER HANDLING (Watts) |
|
| Continous RMS |
1000 |
| Program |
2000 |
| Peak |
4000 |
| LF DRIVER |
|
| Lf driver size mm / inches |
1x12” |
| Lf voice coil size |
5“ voice coil |
| Lf magnet type |
NdFeB |
| MD SECTION |
|
| MID DRIVER Size / Magnet size / Coil size / Frame |
- |
| HF SECTION |
|
| Hf voice coil size |
3.25” coil |
| Hf type |
NdFeB |
| Hf diaphragm material |
Titanium |
| Horn dispersion (H x V) |
90 x 40 |
| CROSSOVER SECTION |
|
| Crossover Frequency / Filter |
1.6kHz |
| PHYSICAL FEATURES |
|
| Finish |
White/Black Paint |
| Construction material |
18mm plywood |
| Handle quantity |
2 |
| Suspenison points |
22 x M10 |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
555/21.85" |
| Width Front / Rear / mm / ins |
375/14.76" |
| Depth ( mm / ins ) |
425/16.73" |
| Net weight ( kg / lbs ) |
30kg/66 lbs |
| Gross weight ( kg / lbs ) |
35kg/77 lbs | | (cijena za komad)
akcija: 8174.93 kn
|
