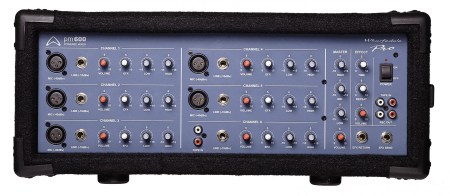

The PM600 mixer features six mono input channels for applications requiring more than six source inputs. The LF control frequency has been carefully selected on the PM600, allowing vocals or instruments to be finely tuned without losing their natural balance. The HF control is similarly designed to cut out unwanted harshness or excessive mid high range interference
The Benefits of a PM600 Mixer!
One unit to balance and combine all instrument and microphone source inputs
Quick and easy to set up
Portable, light and easy to carry
TAPE IN sockets allow cassette recorders or CD players to be added to the Main Output
Digital Delay section allows adjustment of interval time, repeat rate and volume of the delays.
Designed with generous headroom to ensure excellent sonic quality is delivered continuously at both high and low frequencies.
The PM600 mixer features six mono input channels for applications requiring more than six source inputs.
Applications:
The PM series powered mixers can be used in a variety of applications.
SPECIFICATIONS |
MODEL |
PM-600 |
POWER AMP-MAX OUTPUT IN WATTS |
|
4 OHMS |
230 WATTS |
INPUTS |
|
BALANCED MIC |
5 |
LINE CHANNELS |
6 |
INPUT IMPEDANCE |
|
LOW Z (BALANCED) |
2K OHMS |
SUPER HI-Z INPUT (UNBALANCED) |
N/A |
LINE |
16K OHMS |
CHANNEL 6&7 LINE UNBALANCED |
N/A |
MAIN OUT |
UNBAL. TRS |
CHANNELS |
6 |
FREQUENCY RESPONSE (+/-3dB) |
20Hz-25KHz |
MAXIMUM CHANNEL GAIN |
|
LOW Z (BALANCED) |
40dB |
HI-Z |
20dB |
SUPER HI-Z |
N/A |
CHANNEL 6&7 (PM700) |
N/A |
MAXIMUM OUTPUT LEVEL |
|
MAIN |
+18dBv |
RECORD OUT |
+5dBv |
CHANNEL EQ |
High:12kHz Low: 80Hz @ +/-15dB Shelving |
MASTER EQ |
|
HI EQ |
12KHz+2dB |
MID EQ |
1KHz+2dB |
LOW EQ |
80Hz+2dB |
PROTECTION |
THERMAL & DC |
DIGITAL EFFECT |
ADJUSTABLE TIME AND REPEAT DELAY EFFECT |
THD |
LESS THAN 0.1% |
POWER CONSUMPTION |
230 WATTS |
POWER REQUIREMENTS |
330 WATTS |
SPEAKER CONNECTOR |
1/4"JACK |
WEIGHT |
PM600: 11.48KG/24.7lbs |
DIMENSIONS (W x D x H) mm |
PM600: 475 x 241 x 188 mm |
DIMENSIONS inches |
PM600: 19 x 9.5 x 7.4 inches | |
|
