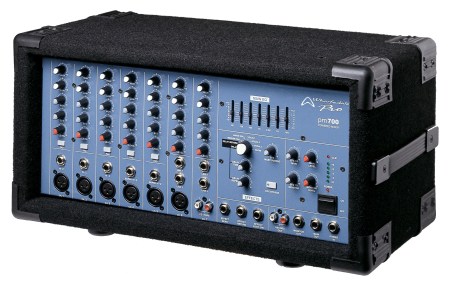

The PM700 is a compact, powered mixer from Wharfedale Professional and can be used in a variety of application, sound reinforcement or public address. The PM700 mixer is designed to withstand the rigours of life on the road by being house in a tough wooden, carpet covered surround.
The PM700 offers an extra input channel making seven in total plus a seven band graphic equaliser for flexible sound shaping and feedback control. This powered mixer is designed for great value, great sound. It’s simple to transport and easy to set up, and is round tough sound systems for the most discerning of professional users!
The Benefits of a PM700 Mixer!

The PM700 offers an extra input channel, making seven in total plus a seven band graphic equaliser for flexible sound shaping and feedback control.
SPECIFICATIONS |
MODEL |
PM-700 |
POWER AMP-MAX OUTPUT IN WATTS |
300W @ 4ohms |
4 OHMS |
450W @ 2ohms |
INPUTS |
|
BALANCED MIC |
6 |
LINE CHANNELS |
7 |
INPUT IMPEDANCE |
|
LOW Z (BALANCED) |
4K OHMS |
SUPER HI-Z INPUT (UNBALANCED) |
470K OHMS |
LINE |
10K OHMS |
CHANNEL 6&7 LINE UNBALANCED |
30K OHMS |
MAIN OUT |
UNBAL. TRS |
CHANNELS |
7 |
FREQUENCY RESPONSE (+/-3dB) |
20Hz-25KHz |
MAXIMUM CHANNEL GAIN |
|
LOW Z (BALANCED) |
60dB |
HI-Z |
45dB |
SUPER HI-Z |
45dB |
CHANNEL 6&7 (PM700) |
22dB |
MAXIMUM OUTPUT LEVEL |
|
MAIN |
+18dBv |
RECORD OUT |
+5dBv |
CHANNEL EQ |
High: 12kHz Low: 100Hz
|
MASTER EQ |
|
HI EQ |
7 BAND GRAPHIC EQ |
MID EQ |
7 BAND GRAPHIC EQ |
LOW EQ |
7 BAND GRAPHIC EQ |
PROTECTION |
THERMAL/DC/CLIP |
DIGITAL EFFECT |
8 PRESET REVERB PLUS ADJUSTABLE TIME AND REPEAT DELAY EFFECT |
THD |
LESS THAN 0.1% |
POWER CONSUMPTION |
330 WATTS |
POWER REQUIREMENTS |
400 WATTS |
SPEAKER CONNECTOR |
1/4"JACK |
WEIGHT |
PM700: 11KG/24.25lbs |
DIMENSIONS (W x D x H) mm |
PM700: 475 x 245 x 240 mm |
DIMENSIONS inches |
PM700: 19 x 9.9 x 9.4 inches | |
cijena: 3160,50 kn
|
