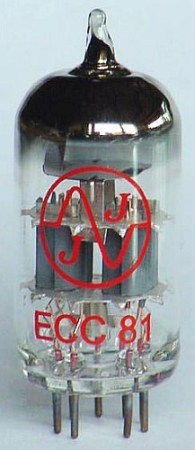

A. F. DOUBLE TRIODE
Base: NOVAL
Uf = 6,3 or 12,6 V
If = 300 or 150 mA
Typical characteristic:
Ua = 250 V
Ia = 10 mA
Ug = -2 V
S = 5,5 mA/V
μ = 60
Ri = 11 kΩ
Limiting values:
Ua = 300 V
Wa = 2,5 W
Ik = 15 mA
Ug = -50 V
Uk/f = 90 V
Rg = 1 MΩ
akcija: 75,35 kn
|
