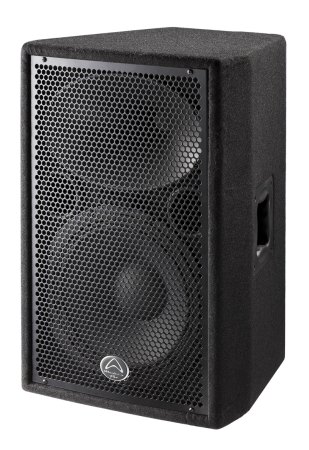

Wharfedale DLX™ Series sound reinforcement speakers are designed for demanding applications, i.e. portable and fixed installation concert venues.
The 50.8mm (2”) Titanium high frequency drivers project crystal clear high frequencies. A proprietary 90° x 45° High Frequency Horn delivers the high frequencies in a well defined, even coverage pattern. Dynamic passages, such as the crack of a snare drum or the report of a cannon, come through just like the real thing.
The DLX 12 is very flexible in application. With its heavy duty components and the ability to switch from passive mode to bi-amp mode with the flip of a switch, the DLX 12 can rise to any sound reinforcement challenge.
SPECIFICATIONS
| MODEL |
DLX 12 |
| GENERAL INFO |
|
| System type |
12” 2-way passive |
| Frequency response +/- 3db |
60-20kHz |
| Sensitivity (db 1w@1m) |
97dB |
| System impedance |
FULL RANGE:4 or 8Ω, BI-AMP LF:4 or 8Ω, BI-AMP HF: 8Ω |
| System FB |
60Hz |
| Maximum SPL Peak dB |
129dB |
| POWER HANDLING (Watts) |
|
| Continuous RMS |
400 |
| Program |
800 |
| Peak |
1600 |
| LF DRIVER |
|
| Lf driver size mm / inches |
12" |
| Lf voice coil size |
38.9/1.5" |
| HF SECTION |
|
| Hf voice coil size |
50/2" |
| Hf exit size mm / inches |
35/1.4" |
| Hf diaphragm material |
Titanium |
| Horn dispersion (H x V) |
90° x 45° |
| Hf horn shape |
Eliptical |
| CROSSOVER SECTION |
|
| Crossover Frequency / Filter |
1.8kHz, Bi-amp/passive ,externally switchable |
| Hf driver protection |
Bulb |
| IN / OUT PANEL (speaker Level) |
|
| Input connector |
2xNeutrik NL4 Speakon |
| PHYSICAL FEATURES |
|
| Enclosure type |
trapezoidal |
| Finish |
carpet black |
| Construction material |
15 mm MDF/particle |
| Handle quantity |
2 |
| Stand adapter - BOTTOM |
yes |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
630 |
| Width Front / Rear / mm / ins |
390/241.2 |
| Depth ( mm / ins ) |
373 |
| Net weight ( kg / lbs ) |
27,5 kg |
| Gross weight ( kg / lbs ) |
29,74 kg |
