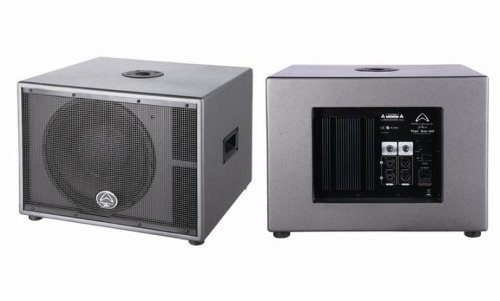

The new Wharfedale Pro Titan™ Sub-A12, a powerful active subwoofer system designed to produce high quality audio in any performance application. The Titan™ Sub-A12 combines the newest technologies, materials and design topology to ensure absolute accuracy and high output.
The TITAN™ Sub-A12 is powerful 12 inch band pass active subwoofer. A built-in 250 watt (continuous) 500 watt (peak) amplifier conveniently accepts stereo or mono line level inputs via dual, balanced, XLR-¼" "combo" connectors as well as a unique single channel 4Ω speaker level input via a ¼" phone jack which allows for use with a standard sound reinforcement amplifier (when the internal amplifier is not used).
A custom designed, down-firing, aluminum cast frame 12" woofer, with a 2.5" voice coil, is utilized as the heart of the Titan™ Sub-A12's complementary low frequency enhancement system. Integral signal processing includes a dynamic AGC (Automatic Gain Control) circuit, a stereo crossover and signal limiting for the prevention of a distorted signal to the internal amplifier. A convenient and an essential PHASE switch is included to allow for proper subwoofer signal polarity to be selected.
A pair of balanced XLR male output connections, with switchable "High-Pass" mode are available for the stereo line level outputs and may be used to pass through mono or stereo signals from the inputs to another system or to send a high-pass, line-level stereo signal to a pair of powered, full-range speakers such as the popular Wharfedale Pro Titan™ ACTIVE models.
1. Pole mount socket
The top of the Titan™ Sub-A12 provides a convenient built in pole mount socket for easy mounting of a standard 35mm diameter speaker pole (such as the Wharfedale Pro SP-1) for easy top-side mounting of a mid/high passive or active speaker.
2. Integral Carry Handle
The Titan™ Sub-A12 has two rubber over-molded carry handles (one on each side) for easy transportation of the enclosure.
3. Rubber Feet
There are four skid-resistant screw mounted rubber feet on the bottom of the Titan™ Sub-A12.
4. Ports
There are two ports on front of the Titan™ Sub-A12 that are reflex tuned to provide enhanced low frequency response from the enclosure.
Applications:
Because of its functional cabinet design, the Titan™ Sub-A12 is versatile and applicable in a variety of configurations. At home indoors or outdoors, on stage, in clubs, at rehearsals, in theaters and houses of worship, the Titan™ Sub-A12 will provide the high standards of low frequency audio reproduction that you require.
SPECIFICATIONS |
GENERAL INFO |
|
System type |
Reflex subwoofer |
Frequency response +/- 3db |
55-200Hz |
CROSSOVER SECTION |
|
Crossover Frequency / Filter |
80Hz/100Hz/120Hz/150Hz/180Hz/200Hz (adjustable) |
PHYSICAL FEATURES |
|
Enclosure Material |
15mm MDF |
Enclosure Colour |
Grey |
Frame Material |
steel frame |
DIMENSIONS & WEIGHT |
|
Net weight ( kg / lbs ) |
22.31kg /49.0lbs |
Gross weight ( kg / lbs ) |
26.26kg / 57.8lbs |
Size (mm/inches) |
305mm / 12" |
Coil Size (mm/inches) |
64.26mm / 2.5" |
AMPLIFIER POWER |
|
Continous RMS |
250W |
Peak (Wats) |
500W |
Power on indicator |
LED |
Power On Protection |
Power switch on / off mute |
Thermal Protection |
Amplifier shutdown, auto reset |
Low Line Voltage Shut Down |
60% Nominal line voltage |
Driver Protection |
Independent LF limiters |
DC Protection |
Yes |
Short Protection |
Yes |
INPUT SENSITIVITY |
0.37V |
Dimensions (HxWxD) |
|
mm |
360.0mm x 493.0mm x 431.0mm |
inches |
14.2" x 19.4" x 16.9" |
Impedance |
4 ohm |
Speaker Pole Adapter |
Yes |
Inputs A & B Type / Connection |
Balanced Line Level inputs via two combo connectors |
Outputs A & B Type / Connection |
Balanced Line Level inputs via two combo connectors |
High Pass Frequency Selection |
150Hz |
Phase Switch Selection |
0° / 180° |
Clip Limiter |
Turns on approx 250W output |
Limiter Indicator |
Red LED |
Power Indicator |
Blue LED | (cijena za komad)
akcija: 3059,01 kn |
