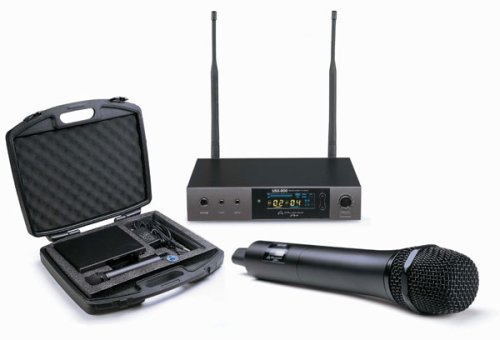

USX-800 Wireless Microphone System is a competitively priced, "True-Diversity" wireless system incorporating the latest advances in wireless microphone technology.
The USX-800 incorporates a dual antenna UHF receiver with two identical tuners eliminating dropouts and unstable reception. The innovative Auto Frequency Scan function enables the system to automatically scan the UHF frequency band and select the strongest RF signals from the microphone's transmitter. By simply pressing the Sync button on the receiver, the user can automatically lock any of 50 available UHF frequencies between the transmitter and receiver. An infrared transmission link also feeds data to the hand-held transmitter providing up-to-date status of the signal strength, battery condition and selected transmission parameters.
The USX-800 is available in HC (condenser), HD (dynamic) and white versions. The USX800-HC condenser version features an electret condenser capsule to provide smooth response and exceptional clarity - perfect for clear, crisp vocal projection. This model also has a dual wind shield to reduce proximity effect.
The USX800-HD has a dynamic neodymium capsule to provide warm and accurate vocal reproduction and tailored presence rise for excellent intelligibility and superior vocal projection.
Both models feature super cardioid patterns for high gain before feedback and increased rejection of off axis sound.
SPECIFICATIONS |
Microphone / Transmitter |
|
Housing Material |
Aluminium Extrusion |
Oscillation Mode |
PLL Synthesized |
Carrier Frequency Range |
UHF 529-865 MHz |
Stability |
+/- 0.005% (-10/50C) |
Frequency Adjustment |
Autmatic Channel Setting |
RF Output Power |
>10dmW |
Spurious Emissions |
+/-55dBc |
Bettery |
1.5V (AA) x2 |
Maximum Input Level |
140dB SPL |
Receiver |
|
Functional Distance |
>100 metres (open area distance) |
Main Frame Size |
EIA Standard 1/2 rack unit |
Channels |
Single Channel |
Receiver Module |
True Diversity |
Oscillation Mode |
PLL Synthesized |
Stability |
+/-0.005% (-10-50C) |
Bandwidth |
13MHz |
Sensitivity |
2u V (S/N>12dB 25KHz deviation) |
Frequency Interval |
250KHz |
Avaliable Frequency |
50 |
Squelch Innovative |
Pilo Tome / Noise Lock Dual Squelch Circuit |
Maximum Output Level |
MIC Level -14dBV/100 Ohm, Line Level- 4dBV/5K Ohm |
Output Connectors |
XLR balanced & 1/4"/6.3mm unbalanced phone jack |
AC Power Supply |
External 90-260 VAC |
DC Power Supply |
1A, 12-15VDC |
Signal to Noise Ratio |
>105dBA |
Total Harmonic Distortion |
50Hz-18KHz+/--3dB |
Carrier Frequency Range |
UHF -680-806MHz |
Dimensions : Inches/mm |
1.7"(H) x 8.6"(W) x 6.3"(D) / 44mm (H) x 220mm (W) x 160mm (D) |
cijena: 3724,98 kn
|
