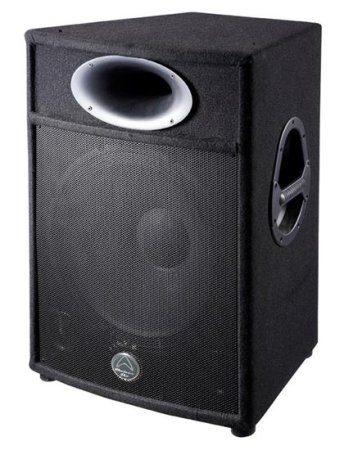

The SVP-X15 loudspeaker is a 15" 2-way full range high quality speaker system designed to provide the best sound in a powerful, feature laden, easy to use package. It has been designed to provide transparent and accurate sound reproduction or reinforcement. The 25.4mm (1") exit 1.2" cloth diaphragm HF compression driver projects crystal clear high frequencies. A proprietary 90° x 60° Elliptical Wave Guide (EWG) delivers the high frequencies in a well defined, even coverage pattern.
|
SPECIFICATIONS | |
| GENERAL INFO |
|
| System type |
15" 2-way passive |
| Frequency response +/- 3db |
45-20kHz |
| Sensitivity (db 1w@1m) |
98dB |
| System impedance |
8 ohm |
| Maximum SPL Peak dB |
126dB |
| POWER HANDLING (Watts) |
|
| Continuous RMS |
200 |
| Program |
400 |
| Peak |
800 |
| LF DRIVER |
|
| Lf driver size mm / inches |
381mm/ 15 " |
| Lf voice coil size |
50.8mm/ 2.0 " |
| HF SECTION |
|
| Hf voice coil size |
25mm/1 " |
| Hf type |
Compression |
| Hf diaphragm material |
Cloth |
| Horn dispersion (H x V) |
90°x 60° |
| Hf exit size mm / inches |
30mm/1.2 " |
| Hf horn shape |
Elliptical |
| CROSSOVER SECTION |
|
| Crossover Frequency / Filter |
2-way 3.2KHz |
| Hf driver protection |
PTC |
| PHYSICAL FEATURES |
|
| Handle quantity |
2 |
| Enclosure type |
Trapezoidal |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
650/525.6 " |
| Width Front / Rear / mm / ins |
457(280.5)/18.0(11.0) " |
| Depth ( mm / ins ) |
340/13.4 " |
| Net weight ( kg / lbs ) |
17.5kg / 38.5 lbs |
| IN / OUT PANEL (speaker Level) |
|
| Input connector |
2 x Speakon ™ |
