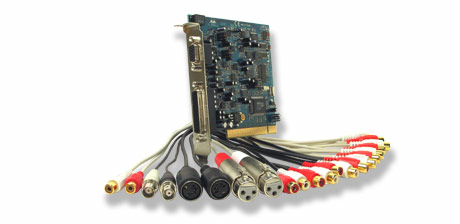

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card—and at a fraction of the price. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It’s all on a compact, half-size PCI card with two color-coded breakout cables.

Features:
8 x 8 analog I/O
2 mic preamps or line inputs
S/PDIF digital I/O (coaxial) with 2-channel PCM
SCMS copy protection control
digital I/O supports surround-encoded AC-3 and DTS pass-through
1 x 1 MIDI I/O
directly drive up to 7.1 surround (bass management software included)
software controlled 36-bit internal DSP digital mixing/routing
+4dbu/-10dBV operation individually switched in software
word clock I/O for sample accurate device synchronization
Apple G5 compatible
includes Maximum Audio Tools software bundle
Specifications:
frequency response: 22Hz-22kHz, -0.2,-0.4dB @48kHz
22Hz-40kHz, -0.2,-0.7db @96kHz
dynamic range (A-weighted measured): 101.5dB (D/A)
99.6dB (A/D)
THD: < 0.002% (A/D and D/A)
size/weight: 5-1/8” x 7/8” x 5-3/8”; 0.25 lbs.
36-bit Embedded DSP

All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/O—all with extremely fast throughput for low-latency software monitoring. A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad conrols and digital I/O control on up to four installed Delta cards. All controls are also easily accessible through most professional audio software applications for seamless integration and operation.

Compatibility:
ASIO 2
MME
Sound Manager
OMS
DirectX
GSIF
Mac OS X Core Audio / Core MIDI

Minimum system requirements (PS):
Windows 98SE / Me / 2000 (SP4) / XP (SP1)
For 96kHz operation: Pentium III 500mHz w/ 128MB RAM
For 48kHz operation: Pentium II 400 w/ 64MB RAM

Minimum system requirements (MAC):
G3/G4* 500MHz
OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAM
OMS 2.3.8 for MIDI under OS 9.2.2
* G3/G4 accelerator cards not supported; OS 10.3 required for Dolby Digital and DTS pass-through with Apple DVD Player
