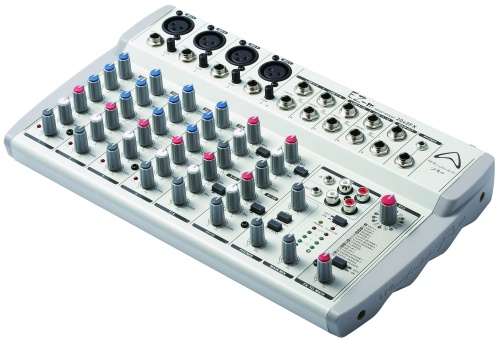

The EZ-M® Mini mixer has 4 low noise balanced microphone / line inputs with 3 band EQ, FX send and switchable +48v phantom power. A further balanced 4 stereo line inputs with FX send are provided. An integral digital effects processor makes it easy to add reverb and other effects without bulky external equipment. A tape input and output is provided on RCA and 1/8” stereo jack for connection to external recording equipment. A headphone output is
provided on ¼” and 1/8” stereo jack.

Easy to transport, setup and operate, the EZ-M® is an ideal choice for home recording, AV
production, small gigs or as a sub-mixer for larger gigs.

FEATURES

- High Quality Multi-Channel Mixer
- 12 Channels
- Channels 1 – 4
  XLR + TRS balanced inputs
  3 band (Low/Mid/High) EQ
  Gain adjustment
  EFX level control
  L/R pan control
  Phantom Power
  Clip LED
- Stereo Channels 5 – 12
  TRS balanced inputs
  Gain control
  EFX level control
  Balance adjustment
  -10dB/ +4dB switch
- 2 x 2 Track (2TK) inputs (RCA + 3.5mm)
- 2TK to Mains/ Headphones Switches
- Digital EFX: 16 effects
- Headphone Outputs (TRS + 3.5mm) with level control
