ZOOM

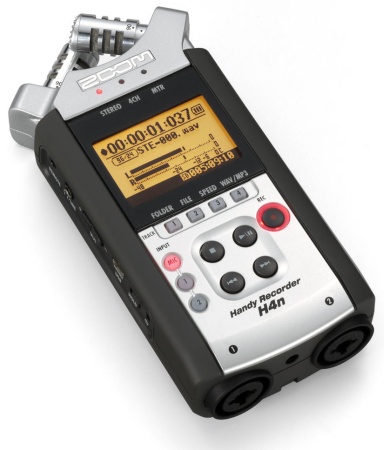

H4n


Its onboard X/Y stereo condenser mics are arranged with the right and left mics on the same axis. This design ensures that the mics are always an equal distance from the sound source for perfect localization without phase shifting. Frequency response remains uniform throughout your recording. The result is great stereo recording with natural depth and accurate imaging every time.


Custom designed, onboard X/Y stereo condenser mics allow variable recording patterns at either 90° or 120°. Our unique design lets you rotate each mic capsule from 90° (standard) to 120° (wide-angle) stereo for the ultimate versatility in any recording situation. Now your recordings can be richer than ever before.
Built-in Mic, Polar Pattern, Frequency Response

Choose up to 24-bit/96-kHz linear PCM WAV files for audio resolution that surpasses CD quality. Or, when maximum recording time with smaller file size is desired, select a variety of MP3 formats to produce smaller files suitable for web or e-mail distribution.


The H4n uses compact SD or high-capacity SDHC memory cards of up to 32GB. Unlike other media such as tape or discs, SD cards produce no mechanical noise, are not disturbed by vibrations and are readily available for your convenience. Maximum Recordable Time Operation Confirmed SD Cards

Our new, digitally controlled, high-quality preamplifier renders audio so precise, you'll sound like you recorded in a world-class studio. And this new preamp means you can make recording level adjustments on the fly. Of course, an automatic level setting function is also built in to optimize the level quickly as the situation requires.

Learning new songs is now a breeze with the H4n's adjustable playback speed that ranges from 50 to 150 percent, while keeping pitch the same. This is also a great feature for learning a language, conference recording, and various electronic news gathering (ENG) situations.


With its low-cut filter, the H4n effectively reduces unwanted background noise like wind or air-conditioning noise. A variety of compressors and limiters help to optimize the dynamic range while preventing distortion.	Low-cut filter eliminates wind noise


For situations where you require maximized, continuous recording operation you can select stamina mode which effectively doubles battery life, letting you record continuously for about 11 hours in 16-bit/44.1-kHz linear PCM format.	STAMINA Mode Switch


The H4n is the only handheld recorder that features built-in combination XLR/Phone connectors with phantom voltage source capability. With its Hi-Z inputs, you can record guitars or other line output sources such as mixing consoles. A separate external mic input supports plug-in power microphones.


Proper miking is essential to making a great recording. The H4n is the only handheld recorder that allows recording on four channels simultaneously by using your own external mics with its onboard mics. Use its built-in mixer to blend the channels for perfectly balanced recordings of extraordinary depth and clarity.

You can set your H4n to automatically record whenever sound above your designated level is detected. This ensures that you capture everything of importance while minimizing blank sections such as when recording a conference or lecture.


The H4n can also be set to continuously record the most recent two seconds of audio in memory. Now, you never miss the beginning of anything you want to record, even when it begins suddenly.

Even without external software, you can divide a recorded file at any desired point, right on the H4n. A built-in normalizing feature lets you optimize the volume level, and you can convert WAV files into MP3 directly on the unit as well.

You can choose between single-song playback, single-song repeat, all-songs playback, or all-songs repeat. This is great when you want to use the H4n as a personal trainer for learning new music. A-B repeat even lets you zoom in on a specified section of a song.

The H4n supports Broadcast Wave Format (BWF) used in broadcasting and other professional A/V applications. Recorded files carry time stamp information and you can set markers (cue points) during recording or playback.

A stereo input signal can be mixed down to mono to reduce unwanted sound source position shifts between right and left channels. This is ideal for recording interviews.

The built-in M/S stereo decoder allows the use of an external Mid-Side microphone setups. The H4n converts the mid and side channel signals into a conventional stereo (L/R) signal for even more versatility, and it's only found on the H4n.


The MTR mode allows simultaneous 2-track recording and 4-track playback. With this feature, creating songs by overdubbing vocals and instruments is a snap. Level and panning can be adjusted individually for each track on the built-in mixer, and you can even do a mixdown right on the H4n. *In the MTR mode, the recording format is fixed to 16-bit/44.1kHz WAV files.

Center cancel and pitch control functions
With its center cancel function, the H4n even lets you suppress audio that is recorded with center imaging. And because the H4n also lets you alter pitch without changing playback speed, you can choose source material, suppress the center audio and use it as a backing track while recording a vocal or guitar track.

Onboard effects include studio effects and guitar amp models
The H4n offers a choice of 50 studio-quality DSP effects including compressor, chorus, phaser, delay, and reverb. In addition, models of the most famous guitar amps are included. Find tone perfection with classic amp models during your recording sessions.

<Amp Models>
For Guitar	FD Clean, VX Clean, HW Clean, US Blues, BG Crunch, MS #1959, PV Drive, Rect Vnt, DZ Drive, TS+FD_Combo, SD+MS_Stack, FZ+MS_Stack
For Bass	SVT, Bassman, Hartke, SuperBass, Sansamp, Tube Pre


The H4n has a number of useful tools that will be welcomed by musicians. The built-in tuner allows for quickly checking the pitch of a vocalist or tuning an instrument. The selectable metronome sound can serve as a guide rhythm during recording and is also great for practicing.


The H4n even has a built-in reference speaker to let you check recordings without earphones. It is also handy to preview playback when selecting recorded files.

A large, 1.9 inch LCD screen with backlit graphic display shows all the tracking information at a glance and makes it easy to navigate the functions of the unit. And its new rubberized, shock resistant chassis also improves durability while reducing handling noise.


The H4n is now a USB 2.0 Hi-Speed device, meaning that files can be transferred to a computer at the highest rate available. Then use recording software for editing, create your own original CDs, post your recordings on your myspace page or send out your recordings by e-mail... the possibilities are endless.

The H4n also functions as a USB audio interface, letting you record directly to your computer. Use your favorite recording software or the bundled Cubase LE 4 from Steinberg, so you can start to produce and edit music right away.

Supported OS:

Windows XP / Vista
Mac OS X 10.4 or later

*For details about the bundled software ''Cubase LE4'' --> Click Here

The H4n can record continuously for about six hours on a set of two IEC R6 (size AA) alkaline batteries. Use the supplied AC adaptor when working at home. The H4n also runs on USB bus power when using the H4n as an audio interface.


A 1 GB SD card, windscreen, mic clip adapter, AC adaptor, USB cable, protective case and Cubase LE recording software are included. The windscreen is especially helpful to reduce wind noise. A mic clip adapter for attaching the unit to a standard mic stand is also included, or you can use the built-in tripod mount with a standard camera tripod.	*A tripod is not included.

Go remote with the RC4 An optional remote controller (RC4) gives you access to a range of functions including recording start, play, stop, fast forward/reverse, recording level adjustment, and input source switching. It is also useful for preventing any handling noise.
Remote Controller RC4

Included Accessories

SD Memory Card (1GB)	Wind Screen	Mic Clip Adaptor
AC Adaptor(AD-14)	USB Cable	Protective Case

H4n Names of Parts

H4n SPECIFICATIONS

<STEREO Mode>
●Simultaneous Recording Tracks: 2 ●Simultaneous Playback Tracks: 2 ●Functions: Lo-cut Filter, Compressor/Limiter, Mono Mix, M/SStereo Decoder, Auto-Rec, Pre-Rec, Tuner, Metronome, A-B Repeat, Variable Speed Playback, File Dividing, Normalize, MP3 Post-Encode, Marker ●Recording Format: WAV (Quantization: 16/24bit, Sampling Frequency: 44.1/48/96kHz), MP3 (Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps/VBR, Sampling Frequency: 44.1kHz) ●Playback Format: WAV （Quantization: 16/24bit, Sampling Frequency: 44.1/48/96kHz), MP3 (Bit Rate: 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps/VBR, Sampling Frequency: 44.1/48kHz)

<4CH Mode>
●Simultaneous Recording Tracks: 4 ●Simultaneous Playback Tracks: 4 ●Functions: Lo-cut Filter, Compressor/Limiter, M/S Stereo Decoder, Auto-Rec, Pre-Rec, Tuner, Metronome, A-B Repeat, Normalize, Marker ●Recording Format: WAV (Quantization: 16/24bit, Sampling Frequency: 44.1/48kHz) ●Playback Format: WAV (Quantization: 16/24bit, Sampling Frequency: 44.1/48kHz)

<MTR Mode>
●Simultaneous Recording Tracks: 2 ●Simultaneous Playback Tracks: 4 ●Effect: 50 types, 2 Modules, 60 patches ●Functions: Tuner,Metronome, Punch-In/Out, Bounce ●Recording Format: WAV (Quantization:16bit, Sampling Frequency: 44.1kHz) ●Playback Format: WAV (Quantization:16bit, Sampling Frequency: 44.1kHz)

<STAMINA Mode>
●Simultaneous Recording Tracks: 2 ●Simultaneous Playback Tracks: 2 ●Functions: Lo-cut Filter, Auto-Rec ●Recording Format: WAV(Quantization: 16bit, Sampling Frequency: 44.1kHz) ●Playback Format: WAV(Quantization: 16bit, Sampling Frequency: 44.1kHz)

<Common Specs>
●A/D Conversion: 24bit, 128times oversampling ●D/A Conversion: 24bit,128times oversampling ●Signal Processing: 32bit ●Recording Media: SD memory card (16MB - 2GB), SDHC memory card (4GB - 32GB) ●Display: 128 x 64pixel, 1.9-inch backlit LCD ●Balanced / Unbalanced Input: 2 x XLR-1/4"phone combo Jack ●Input Impedance: balanced input = 1kΩ balanced / pin 2 hot, unbalanced input = 480kΩ unbalanced ●Input Level: balanced input = -10 to -42dBm, unbalanced input = +2 to -32dBm ●Phantom Power Supply: 48V,24V, OFF ●Built-in Stereo Mic: Unidirectional condenser microphone (Gain: +7 to +47dB) ●External Mic Input: 1/8" stereo phone jack(Plug- in powered,Input impedance: 2kΩ, Input level: -7 to -47dBm) ●Phones / Line Output: 1/8" stereo phone jack ●Output Load Impedance: 10kΩ or more ●Rated Output Level: -10dBm ●Phones Output Level: 20mW + 20mW into 32Ω load ●Built-in Speaker: 400mW 8Ω ●Phantom Power: 48V, 24V, OFF ●USB Interface: Mini-B type (USB2.0 High Speed compatible), Mass Storage Class operation / Audio Interface operation (16bit, 44.1kHz / 48kHz) ●Power Requirements: AA size (LR6) battery x 2, or AC adaptor (DC5V/1A/center plus) ●Battery Life (with alkaline batteries): 6 hours (Normal mode), 11 hours (Stamina mode) ●Dimensions: 70(W) x 156.3(D) x 35(H)mm ●Weight: 280g (without batteries)

*Windows(R), Windows(R) XP and Windows(R) Vista are registered trademarks of Microsoft Corporation.
*Mac and Macintosh are registered trademarks of Apple Inc.
*Steinberg and Cubase are registered trademarks of Steinberg Media Technologies GmbH.
*The SD and SDHC logos are trademarks.
*The use of MPEG Layer-3 audio compression technology is licensed from Fraunhofer IIS and Sisvel SpA.
*All other trademarks, product names, and company names mentioned in this documentation are the property of their respective owners.
*All features and specifications are subject to change without notice.
*Unauthorized recording of concerts, lectures and other public performances is prohibited by law.
