EVP-X SERIES
The Wharfedale Professional EVP-X series loudspeaker systems are the latest evolution of our highly successful EVP-S family. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class.
High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-X series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

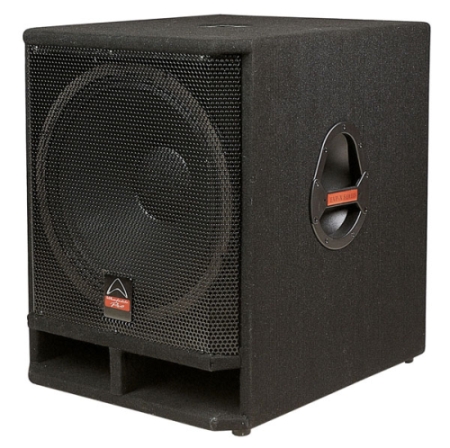

EVP-X15B
- 15" compact subwoofer
- 45 -250Hz frequency response (+/-3dB)
- 4 ohms system impedance
- High pass output for mid/high frequency satellite speakers
- 2 x 1/4" jacks and 2 x Speakon™ type connector
- Rectangular enclosure
- Continuous 400W / Music 800W / Peak 1600W power handling
H/D/W: 591 x 510 x 460 mm, 33.5kg
|
SPECIFICATIONS
|
| GENERAL INFO |
|
| System type |
15" passive subwoofer |
| Frequency response +/- 3db |
45 -250Hz |
| Sensitivity (db 1w@1m) |
99dB |
| System impedance |
4 ohms |
| Maximum SPL Peak dB |
131dB |
| POWER HANDLING (Watts) |
|
| Continuous RMS |
400 |
| Program |
800 |
| Peak |
1600 |
| LF DRIVER |
|
| Lf driver size mm / inches |
1x15" |
| Lf voice coil size |
77.06 / 3.0" |
| CROSSOVER SECTION |
Subwoofer |
| Crossover Frequency / Filter |
150Hz |
| PHYSICAL FEATURES |
|
| Finish |
Black carpet |
| Stand adapter - TOP |
Yes |
| Enclosure type |
Vented |
| Enclosure shape |
Rectangular |
| IN / OUT PANEL (speaker Level) |
|
| Input connector |
2 x 1/4" jacks and 2 x Speakon™ |
| High pass out |
1 x 1/4" jacks and 1 x Speakon™ @ 100Hz |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
591 |
| Width Front / Rear / mm / ins |
460 |
| Depth ( mm / ins ) |
510 |
| Net weight ( kg / lbs ) |
33.5kg |
| Gross weight ( kg / lbs ) |
36.5kg |
(cijena za komad)
cijena: 2938.46 kn
|
