The EVP-X15/18PB is a 15/18 inch direct radiating powered subwoofer. A built in 600 watt (peak) amplifier accepts stereo or mono line level inputs. These line level inputs are summed before being sent to the internal amplifier allowing the subwoofer to operate in stereo systems using a single subwoofer. The subwoofer features a pair of integral 100Hz, 24dB/Octave crossovers to send a high pass, balanced, line level stereo signal to a pair of powered satellite full range speakers or an external amplifier for passive satellite speakers. A speaker level 1/4" jack is also provided for use in applications, such as those employing powered mixers, in which it is more practical to bring a full range speaker level signal to the subwoofer.

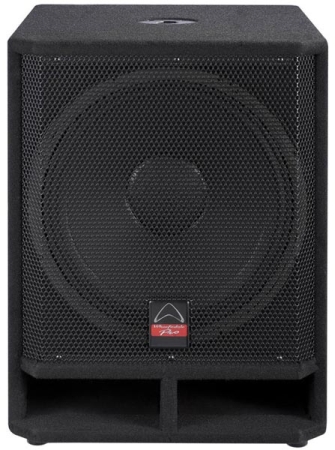

EVP-X15PB
- Powered version for EVP-X15B
- 15" direct-radiating powered subwoofer
- A pair of an integral 150Hz, 24dB/Oct crossovers
- 0o, 180o Phase switch
- Stereo line input and speaker level input
- High pass balanced line output for mid/high satellite speaker connection
- 400W RMS / 600W peak amplifier
H/D/W: 591 x 510 x 460 mm, 35.1kg
|
SPECIFICATIONS | |
| GENERAL INFO |
|
| System type |
15" compact powered subwoofer |
| Frequency response +/- 3db |
45 -200Hz |
| LF DRIVER |
|
| Lf driver size mm / inches |
1x15" |
| Lf voice coil size |
77.06 / 3.0" |
| CROSSOVER SECTION |
|
| Crossover Frequency / Filter |
LPF: 150HZ,24dB |
| PHYSICAL FEATURES |
|
| Finish |
Black carpet |
| Stand adapter - BOTTOM |
No |
| Stand adapter - TOP |
Yes |
| Enclosure shape |
Rectangular |
| AMPLIFIER POWER |
|
| Continous RMS |
400W |
| Peak (Wats) |
600W |
| ProtectionType |
Dynamic/AGC |
| Power on indicator |
Green LED |
| System dynamic AGC |
Orange LED |
| Phase switch |
0 or 180° |
| INPUT SENSITIVITY |
|
| Mic |
N/A |
| Rca |
N/A |
| Line |
0.775V |
| CONNECTORS |
|
| Input connectors A |
Jack/XLR combo sw. bal. mic/line |
| Input connectors B |
Jack/XLR combo line level |
| Line output type |
XLR male balanced |
| Speaker level input |
1/4" TS Phone Jack |
| External speaker out |
N/A |
| INPUT IMPEDANCE |
|
| Mic |
N/A |
| Line input A |
10K |
| Line input B |
10K |
| Main eq |
N/A |
| DIMENSIONS & WEIGHT |
|
| Height ( mm / ins ) |
591 |
| Width Front / Rear / mm / ins |
460 |
| Depth ( mm / ins ) |
510 |
| Net weight ( kg / lbs ) |
35.1 |
| Gross weight ( kg / lbs ) |
38.1 |
(cijena za komad)
akcija: 4181.65 kn
|
|
