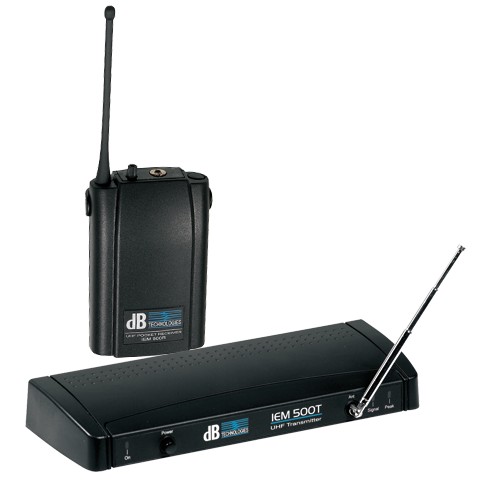

The IEM 500 offers professional InEar Technology for users with a limited budget without compromising in professional sound and safety. This system is recommended when using two units and not many other wireless systems. The IEM 500 is easy to handle since all parameters are pre-adjusted.

The wireless section works in UHF Band and is based on the modern circuitry of the PU850-Series, which convinces not only through high functionality but also through superb audio performance and low power consumption.

The half rack space unit transmitter is fitted with a balanced jack input and volume control on the backside. The fixed antenna is assembled on the front side of the transmitter. The pocket receiver includes a stereo headphone socket, a volume control and an on-/mute-/off switch. The MPH-100 headphones incl. earpieces are recommended to use with the IEM 500.

Specifications

Technical Data

Frequency Band  UHF
Diversity  No
Frequencies  5
Fixed Frequency  Yes
Simultanious Systems In Use  up to 3

In Ear Receiver

Housing  Plastics
LED's  Signal, Peak, On
Antenna  External
Operation  On/Off, Volume
Signal Output  3.5 mm jack
Volume Control  Yes
Limiter  Yes
Battery Type  9V block

In Ear Transmitter

LED's  On, Signal, Peak
Detachable Antenna  No
Signal Input  1x XLR, sym.
Power Socket  External AC/DC Converter

Mechanics

Housing  Plastics
Installation Standard  1 HU
Rack Size  9.5 "
