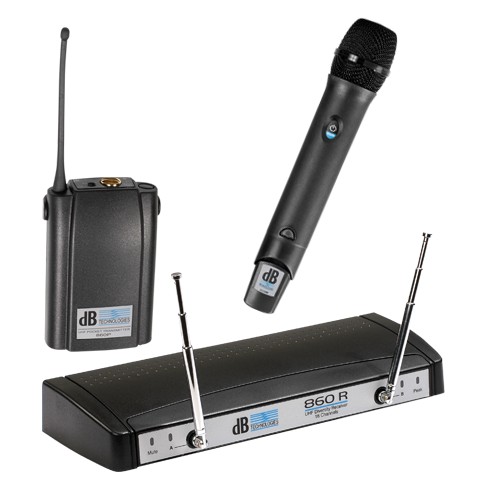

The PU860 UHF wireless system provides 16 switchable frequencies and convinces with outstanding sound and improved dynamics. The ergonomic ´one switch´ design allows easy handling. The integrated blue LED in the transmitter indicates clearly on/off and mute status.
The 860M handheld transmitter uses condenser capsules for brilliant audio quality. The capsule itself is mounted to an elastic spider similar to a studio microphone, to avoid disturbing handling noise. In addition the sensivity of the capsule can be adjusted to different demands.
Included in the system is a well designed pocket transmitter UH860P. It provides 5V phantom power plus a gain control for adjusting the signal levels depending on the use of a lavalier microphone, headset or instrument cable which are available as sets.
Due to the most modern circuitries the PU860-Series offers a very low battery consumption. Battery life of up to 20 hours is possible, using AA rechargeable or standard batteries. Up to 4 PU860 systems can be run in parallel. For rack mount use two different rack adaptors are available.
Specifications
Technical data
Frequency Band UHF
Diversity Yes
Frequencies 16
Switchable Frequencies Yes
Available Frequency Band
Band LW1: 524.250 - 547.300
Band LW2: 639.000 - 661.000
Band U-N: 801.100 - 819.650
Band U-UK: 854.900 - 864.950 MHz
Simultanious Systems In Use Up to 4 systems
Handheld Transmitter
LED's 1x Mute/On
Capsule Condenser
Characteristics Cardioid
Housing Plastics
Antenna Integrated
Operation One Switch-System, Mute, On-Off
Battery Type 2x AAA
Battery capacity up to 20 h
Pocket Transmitter
LED's Peak signal LED, Battery status LED
Antenna external
Operation Input gain control, On/Mute
Signal Input 3.5 mm jack
High Impedance Input Version 860 G with VH 806
Phantom Power 5 V
Battery Type 9V block
Battery capacity 20 h
Receiver Unit
LED's Mute, Peak
Detachable Antenna No
Signal Output 1x XLR, sym.
Power Socket External AC/DC
Mechanics
Housing Plastics
Installation Standard 1 HU
Rack Size 9.5 "
