The Connect Series from Wharfedale Pro are high quality micro-mixers that are suitable for a wide range of applications.
Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. The Microphone pre-amplifiers use the same high quality components and construction methods that are employed in the recently released SL Series Mixers.

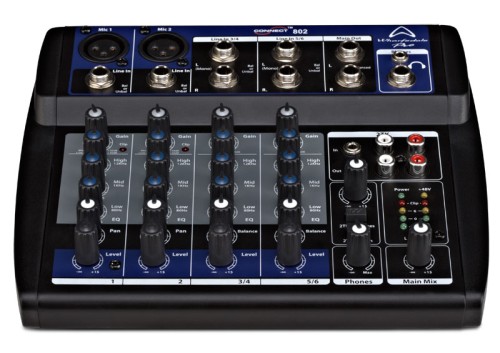

The Connect 802 features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 802 will fit into any situation you need.
| HUM AND NOISE |
-127dB Mic Pre Equivalent Input Noise/ -95dBu Residual Noise |
| Maximum Input Level |
|
| Mic In |
+10dBu |
| Line In |
+20dBu |
| 2TK In |
+20dBu |
| MAXIMUM OUTPUT LEVEL |
+22dBu |
| MONO INPUT CHANNEL GAIN |
50dB Variable (-50~0dB)/ (-40dB~ +10dB) |
| LEVEL METERS |
Dual 4-Segment LED |
| Clip Indicator |
Turns on at approx +16dBu |
| Frequency Response |
20Hz-20kHz ±1dB |
| Weight: (kg/lb) |
1.88kg / 0.92kg (4.14lbs / 2.03lbs) |
| Maximum Headphone Output Level |
>150mw @ 32 ohms |
| Input Channel EQ |
High (±15dB) 12KHz Shelving/ Mid (±15dB) 1KHz Shelving/ Low (±15dB) 80Hz Shelving |
| AC POWER |
100~120V; 220~240V, 50/60Hz |
| THD |
<0.0025% @ +14dBu |
| Dimensions (H x W x D) |
311mm x 77mm x 226 mm/ (12.24" x 3.03" x 8.90")/ 315mm x 267mm x 230 mm/ (12.40" x 10.51" x 9.06") |
cijena: 904,44 kn
|
