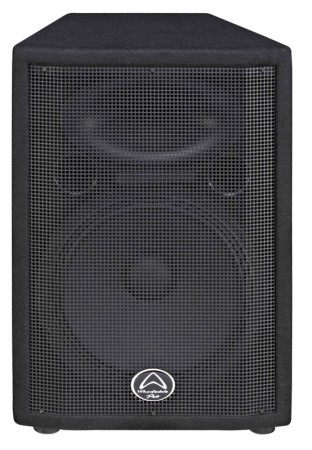

The Kinetic 12 is a passive 2-way loudspeaker that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 12 offers professional features such as a 1” compression driver, 12” custom designed woofer and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.
The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.
| Power Handling |
|
| Continuous |
200W |
| Peak |
800W |
| Programme |
400W |
| Nominal Impedance |
4Ω or 8Ω |
| Max SPL (Calculated) |
125dB |
| LF Size |
305mm / 12" |
| LF Voice Coil |
2.0" |
| HF Voice Coil |
25.4mm / 1" |
| HF Waveguide Type |
Elliptical |
| HF Waveguide Exit |
30.5mm / 1.2" |
| HF Diaphragm Material |
Phenolic |
| HF Protection |
PTC |
| Enclosure Finish |
Black Carpet |
| Grille Material & Finish |
1.2mm Steel |
| Pole Mount |
35mm / 1 3/8" |
| Handles |
2 On Sides |
| Input Connector Type |
2x Speakon + 0.25" Jack |
| HPF Output Connector Type |
|
| Net Weight |
12.28 Kg/ 27 lbs |
| Gross Weight |
13.8 Kg/ 30.4 lbs |
| Dimensions (Unpacked) |
|
| H |
525mm / 20.7" |
| W FRONT/REAR |
362.2/210.1mm / 14.3"/8.27" |
| D |
308mm / 12.13" |
| Dimensions (Packed) |
|
| H |
586mm / 23.07" |
| W FRONT/REAR |
426/242mm / 16.8"/9.53" |
| D |
348mm / 13.7" |
| Configuration |
2-way |
| Frequency Response (±3dB) |
60-20KHz |
| Sensitivity (1W @ 1m) |
96dB |
| Nominal Horizontal Coverage (@1kHz) |
90° |
| Nominal Vertical Coverage (@1kHz) |
60 |
| LF Driver Number |
L01-07010130A |
| HF Driver number |
ZD-53200-01R |
| Enclosure Material and Thickness |
12mm / 0.5" particle |
| Volume |
0.068m3 |
