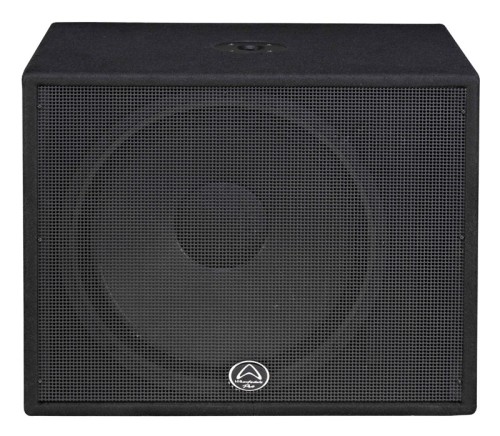

The Kinetic 18B is a passive subwoofer that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 18B offers professional features such as an 18” custom designed woofer and a Speakon/Jack Combination high pass filter output. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.
The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.
| Power Handling |
|
| Continuous |
300W |
| Peak |
1200W |
| Programme |
600W |
| Nominal Impedance |
4Ω |
| Max SPL (Calculated) |
129dB |
| LF Size |
470mm / 18" |
| LF Voice Coil |
2.5" |
| Enclosure Finish |
Black Carpet |
| Grille Material & Finish |
1.2mm Steel |
| Pole Mount |
35mm / 1 3/8" |
| Handles |
2 On Sides |
| Input Connector Type |
2x Speakon + 0.25" Jack |
| HPF Output Connector Type |
1x Speakon + 0.25" Jack |
| Net Weight |
28.74 Kg/ 63.2 lbs |
| Gross Weight |
31.6 Kg/ 69.5 lbs |
| Dimensions (Unpacked) |
|
| H |
512mm / 20.16" |
| W FRONT/REAR |
640mm / 25.19" |
| D |
437mm / 17.2" |
| Dimensions (Packed) |
|
| H |
579mm / 22.79" |
| W FRONT/REAR |
686mm / 27.0" |
| D |
483mm / 19.0" |
| Configuration |
Subwoofer |
| Frequency Response (±3dB) |
45-250Hz |
| Sensitivity (1W @ 1m) |
98dB |
| LF Driver Number |
L01-07010028A |
| Enclosure Material and Thickness |
12mm / 0.5" particle |
| Volume |
0.192m3 |
