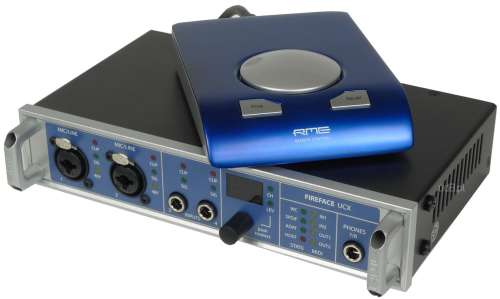

The UCX provides 8 analog I/O in a very flexible combination:

8 Inputs. On the rear: 4 balanced TRS. On the front: 2 XLR inputs with Mic/Line preamps (65 dB Gain) and 2 Hi-Z capable TRS Line/Instrument inputs..

8 Outputs . On the rear: 6 balanced TRS outputs. On the front: One additional TRS stereo phones (playback channels 7/8). The high power phones output offers high volumes even with high-impedance headphones.

Sound Quality . Equipped with a new 2011 A/D and D/A high-performance converter design all I/Os operate at up to 192 kHz. The AD/DA conversion supersedes the outstanding technical specifications of the Fireface UC/400 with an impressive 114 dBA dynamic range on both record and playback. The advanced multi-bit converter architecture guarantees excellent S/N and THD specs across a wide analog level range. In the best RME tradition and product philosophy, the UCX converters and preamps have no characteristic "sound" of their own. They neither add nor remove anything, but capture the original signal just as it is.

Due to its efficient jitter reduction, RME's superior SteadyClockTM finalizes the state-of-the-art AD/DA conversion, even when clocking to an external digital source.

Low Latency Converters . All analog I/Os use a low latency converter design with impressive 14 samples for the ADC, and 7 samples for the DAC, independent of the used sample rate. These values are about a quarter of the Fireface UC/400 (43/28), and even outperform much more expensive devices. A technical breakthrough that reduces the overall latency of timing critical applications, in live situations, and in computer-based recording studios. The converter latency is so low (0.4 ms at 48 kHz) that it can be ignored, turning analog digital monitoring into real analog-style monitoring!

Professional Level Support . A great converter needs to support the common studio levels for the perfect adaptation to other analog equipment without loosing headroom. Like all other RME devices the UCX supports the common professional studio levels: -10 dBV, +4 dBu, Lo / HiGain. The software-controlled reference levels, realized discretely in the analog domain, ensure highest dynamic range and fidelity.
 - Inputs 3 to 8: -10 dBV, +4 dBu and Lo Gain (adjustable in two groups - channels 3/4 and 5 to 8).
 - Outputs 1 to 8: -10 dBV, +4 dBu and Hi Gain (adjustable in two groups - channels 1 to 6 and 7/8).

All outputs can be used for ASIO Direct Monitoring purposes.


cijena: 11.517,76 kn
