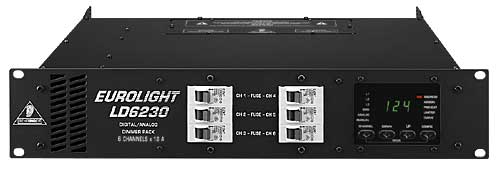

The EUROLIGHT LD6230 is a high-end 6-channel DMX/analog controlled dimmer pack, whose breadth of functions makes it ideally suited for use in TV studios, theatres and live performances. You can control it either digitally using its DMX512 interface or analog by using the additional 8-pole DIN connector. The LD6230 features an adjustable preheat and limiter function for prolonging bulb life. Various transmission characteristics of the control signals from the lighting console are made possible with its precise curve function.

The LD6230 features a switch option that allows a simple on/off control of each channel. An additional useful feature is the automatic digital input check for detecting DMX signal errors. When in manual mode, dimming can be done even without an external lighting console. An auto store function saves all settings after leaving configuration mode. The dimmer pack features a 3-digit display and dedicated control LEDs as well as HARTING® and CEE connection options (connectors not included).

6-channel DMX/analog controlled dimmer pack with up to 10 A output per channel
3-phase mains supply (1 phase possible at lower output power)
DMX512 standard interface for digital control
Additional 8-pole DIN connector for analog control (0 - 10 V)
Adjustable preheat and limiter function to prolong bulb life
Precise curve function enables selection of different fade modes
Switch option for simple on/off control of each channel
Automatic digital input check to detect DMX signal errors
Manual mode for dimming capability without an external lighting console
Auto store function saves all settings after leaving configuration mode
3-digit display and dedicated control LEDs for better indication in dark environment
HARTING® and CEE connection options (connectors not included)
Ultra-rugged construction ensures long life, even under the most demanding conditions
Designed in Germany. Manufactured under ISO9000 certified management system
