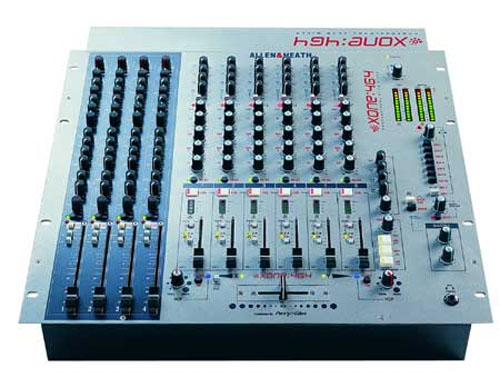

When we decided to build a club mixer, we wanted to satisfy club techs and DJs alike. Xone:464 naturally shares its construction methods with our pro touring desks, so venues can depend on it for outstanding audio and reliability.
Its unique analogue filters and 4 band asymmetric EQ also make it an incredibly creative tool that DJs really enjoy using. We also included a set of 4 fully featured mic/line inputs, which is great for venues running small live sets as well as DJs, or for those pioneering artists who are mixing live and recorded sources.

Technical Specifications
OdBu = 0.775 Volts rms +4dBu = 1.23V rms
OdBu = 1 Volt rms -10dBV = 316mV rms
Maximum output level
XLR +26dBu into >2k ohm load
TRS jack +21dBu into >2k ohm load
RCA phono +15dBu into >10k ohm load
Internal headroom
Channels +21dB
Mix to output +23dB
Peak indicators
Turn on 9 dB before clipping
Meters
MIX 1.2/MONITOR Peak reading 12 led 3 colour
Frequency response
20Hz to 40kHz +0/-1dB
Distortion THD+noise measured at +14dBu 1kHz
< 0.006%
Crosstalk Channel shutoff measured at 1kHz
< 90dB
Noise measured rms 22Hz to 22kHz
MIC EIN -128dB referred to 150 ohm source
Residual output noise
XLR -90dBu (-94dB S/N)
TRS jack -84dBu (-84dB S/N)
L RCA phono -92dBu (-84dB S/N)
Mix noise, ch routed
XLR -86dBu (-90dB S/N)
TRS jack -83dBu (-83dB S/N)
RCA phono -91dBu (-83dB S/N)
Power Supply Internal switch mode power unit with auto sensing mains input.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug supplied
AC mains 100 to 240V AC @ 50/60Hz
Consumption 30W max
Mains fuse rating 100-240V AC T500mA 20mm
