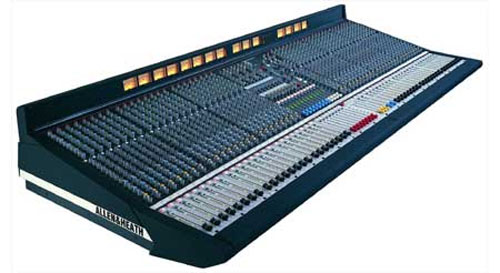

ML4000 sits squarely in the centre of the ML series, providing an ideal solution for those customers who need similar functionality to the ML5000 but who can’t justify the size or expense.
The console boasts advanced VCA capability and our innovative LCRplus panning system. We even found a way to provide a similar level of show automation capability to ML5000, thanks to our archiver / snapshot PC software (available free from this site).
Technical Specifications
0 dBu = 0.775 Volts rms
Operating Levels
Channels 0dBu Headroom +21dB
Mix -2dBu Headroom +23dB
Frequency Response
Mic to main output (+40dB) 20Hz to 30kHz +0/-0.5dB
Line to main output (0dB) 20Hz to 30kHz +0/-0.5dB
Distortion @1kHz +14dBu
THD+noise < 0.01%
CMRR Common mode rejection @1kHz
Mic (+40dB) > 80dB
Mic + Pad (0dB) > 50dB
Crosstalk Referred to driven channel @1kHz
Channel to channel < -95dB
Mute shutoff < -90dB
Fader shutoff < -90dB
Noise Performance
Measured rms 22Hz to 22kHz unweighted
Mic EIN with 150 ohm source -128dB
Residual output noise < -98dBu
Mix noise, nothing routed < -94dBu
Mix noise, 24 channels routed < -82dBu
Metering
Reading 0vu = 0dBu at XLR outputs
LED meters Peak reading, 3 colours
VU meters Ave reading, Illuminated moving coil
Peak indicators 5dB before clip, multi-point sensing
Input meters 5 segment LED (sig, -6, 0, +6, pk)
Group mix meters 5 segment LED (sig, -6, 0, +6, pk)
Group/Matrix meters VU
L,R,C meters VU and 16 segment LED
Channel Filters
Slope 12dB/oct high pass
Frequency 20Hz to 400Hz variable
Mono Equaliser
HF +/-15dB, 2kHz to 20kHz shelf
HM +/-15dB, 500Hz to 15kHz bell, Q = 1 or 2 switched
LM +/-15dB, 35Hz to 1kHz bell, Q = 1 or 2 switched
LF +/-15dB, 20Hz to 200Hz shelf
Stereo Equaliser
HF +/-15dB, 12kHz shelf
HM +/-15dB, 2.5kHz bell
LM +/-15dB, 250Hz bell
LF +/-15dB, 60Hz shelf
Lamp Connectors x3
Connector XLR-F 4pin
Rating 12V 400mA max
Power Supply Model MPS14
Slimline MPS14 switch-mode power supply with linear
post-regulation. Built-in combiner for connection to back-up supply.
Twin fan cooling and full protection.
|
