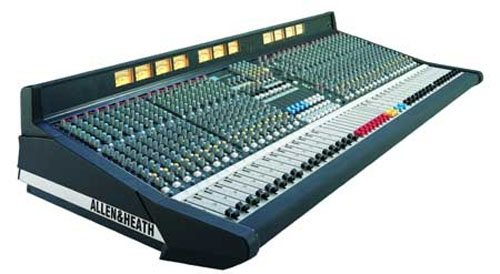

Never before has a fully equipped VCA desk been accessible to so many people. Once again we’ve applied our design skills to making a previously exclusive technology affordable to people on a real world budget.
We’ve also included our unique LCRplus panning system, bringing sophisticated signal imaging within reach for smaller shows. All this power is harnessed in a remarkably compact console which is a real pleasure to drive thanks to its simple, uncluttered control layout.

Technical Specifications
0 dBu = 0.775 Volts rms
Operating Levels
Channels 0dBu Headroom +21dB
Mix -2dBu Headroom +23dB
Frequency Response
Mic to main output (+40dB) 20Hz to 30kHz +0/-0.5dB
Line to main output (0dB) 20Hz to 30kHz +0/-0.5dB
Distortion @1kHz +14dBu
THD+noise < 0.01%
CMRR Common mode rejection @1kHz
Mic (+40dB) > 80dB
Mic + Pad (0dB) > 50dB
Crosstalk Referred to driven channel @1kHz
Channel to channel < -95dB
Mute shutoff < -90dB
Fader shutoff < -90dB
Noise Performance
Measured rms 22Hz to 22kHz unweighted
Mic EIN with 150 ohm source -128dB
Residual output noise < -98dBu
Mix noise, nothing routed < -94dBu
Mix noise, 24 channels routed < -82dBu
Metering
Reading 0vu = 0dBu at XLR outputs
LED meters Peak reading, 3 colours
VU meters Ave reading, Illuminated moving coil
Peak indicators 5dB before clip, multi-point sensing
Input meters 4 segment LED (sig, 0, +6, pk)
Group/Matrix meters VU
L,R,C meters VU and 16 segment LED
Channel Filters
Slope 12dB/oct high pass
Frequency OFF to 400Hz variable
Mono Equaliser
HF +/-15dB, 12kHz Shelf
HM +/-15dB, 500Hz to 15kHz bell
LM +/-15dB, 35Hz to 1kHz bell
LF +/-15dB, 60Hz Shelf
Stereo Equaliser
HF +/-15dB, 12kHz shelf
HM +/-15dB, 2.5kHz bell
LM +/-15dB, 250Hz bell
LF +/-15dB, 60Hz shelf
Lamp Connectors
Connector XLR-F 4pin
Rating 12V 400mA max
