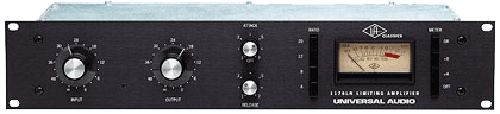

The original Universal Audio 1176LN designed by Bill Putnam was a major breakthrough in limiter technology – the first true peak limiter with all transistor circuitry offering superior performance and a signature sound. Evolved from the popular Universal Audio 175 and 176 vacuum tube limiters, the 1176LN retained the proven qualities of these industry leaders, and set the standard for all limiters to follow.

Today, the 1176LN is new again. While it certainly would have been possible – and much simpler – to modernize and "improve" the 1176LN, every effort was made to remain faithful to Putnam’s design and intentions. Carefully trained staff hand-wire and test each unit until it meets our uncompromising standards. This Universal Audio Classic version of the 1176LN captures all the nuance of the original through obsessive attention to detail and delivers that trademark sound. Demand the original. Accept no copies.

The 1176SA™ calibrates two mono 1176s for stereo operation. The 1176SA was first offered for the original 1176, but has become increasingly difficult to find for use with either vintage or new 1176s. Due to customer demand for stereo operation, we carefully recreated the original adapter. The 1176SA is a small device (4.25" x2.5" x1.75") which rests behind the 1176s. The 1176SA sports a full metal enclosure for proper shielding, gold-plated connectors. A 2-year battery is included. The 1176SA is compatible with both new and vintage models.

Features
- True to the original in design, manufacturing and performance
- Modeled after 1176LN, blackface, D and E revisions
- Ultra fast attack time – 20 microseconds to 800 microseconds
- Class A line level output amplifier
- Custom built Putnam-designed output transformer
- Stereo interconnect operation

Technical Specifications
Input Impedance 600 ohms, bridges-T control (floating)
Output Load Impedance 600 ohms, floating, damping factor 20
External Connections Jones Barrier terminals and XLR connectors
Frequency Response ± 1 dB 20 Hz to 20kHz
Gain 50 dB
Distortion Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting
Signal to Noise Ratio Greater than 70 dB at +10 dBm
Attack Time 20 microseconds to 800 microseconds
Release Time 50 milliseconds to 1.1 seconds
Threshold vs Output Level Compression Ratio Input Level
at ±2 dB Relative Output
20:1 -25 dBm +13 dBm
12:1 -26 dBm +12 dBm
8:1 -27 dBm +11 dBm
4:1 -32 dBm +6 dBm
Stereo Interconnection via 1176 SA Network accessory
Meter dB gain reduction and dB output
Power Requirements 120/240 V
Environmental Maximum operating temperature 160°F
Dimensions 19" Rackmount chassis, 2U
Weight (unboxed) 11 lbs.
