Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion – an accomplishment at the time, still appreciated today.

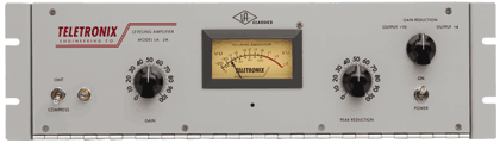

Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.

Features
- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise – less than 70 dB below +10 dBm output

Technical Specifications
Input Impedance 50, 150, 250, 600 ohms
Output Load Impedance 50, 150, 250, 600 ohms
External Connections Jones Barrier terminals and XLR connectors
Frequency Response +0/-1 dB 30 Hz to 15kHz
Gain 40 dB ± 1dB
Input Level +16 dB maximum
Output Level +10 dB nominal, +16 dB maximum
Distortion Less than 0.5% THD (0.25% typical) at ±10 dBm
Noise 70 dB below +10 dBm output level
Attack Time 10 milliseconds
Release Time 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
Meter dB gain reduction and dB output
Power Requirements 35 watts, 120/240 volts, 50/60 Hz
Environmental Maximum operating temperature 160°F
Dimensions 19" Rackmount chassis, 3U
Weight 13 lbs.
