Hammerfall Turbo!
RME presents the Digiface, a highly extended version of the well-known PCI card Project Hammerfall (DIGI9652). Digiface offers 3 ADAT optical I/Os, ADAT-Sync In, SPDIF I/O and word clock I/O like its predecessor. On top, there are 2 MIDI I/Os and a separate analog line out. Thanks to its unique 'Zero CPU Load' technology Hammerfall DSP guarantees highest performance and lowest latency on both notebooks and desktops!

3 x ADAT digital I/O, based on RME's reliable Bitclock PLL

1 x SPDIF digital I/O, based on RME's reliable DIGI96 technology

1 x ADAT Sync In (9-pin D-type) for sample accurate transfers

1 x Word clock I/O (BNC)

1 x analog Line/headphone output, separate output for independent submix

2 x MIDI I/O, 32 channels high-speed MIDI

HDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware

TotalMix: 1456 channel mixer with 40 bit internal resolution

S/MUX poured in hardware: 12 channels 96 kHz/24 bit for record and playback on ADAT optical
...and numerous other features found already in the Hammerfall series. And all this for an unbeatable price!

The HammerfallŽ DSP System comes with drivers for Windows 98/ME (MME with multi-client operation, ASIO 2.0, GSIF), Windows 2000 (MME with multi-client operation, ASIO 2.0) and MacOS (ASIO 2.0).

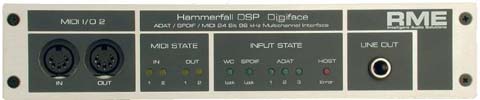

The small box using half the space of a 19" rack doesn't show the included outstanding power and extensive features at first glance. The front panel hosts some useful status LEDs, like MIDI state, lock state of the digital inputs and error state of the host-bus. Additionally there's a high-quality 24 bit/96 kHz analog line output, also usable with headphones, and one MIDI I/O.


The back of the Digiface offers real Hammerfall connectivity: 1 x MIDI I/O, 3 x ADAT I/O, SPDIF I/O, ADAT Sync In and word clock I/O. This compact multi-channel solution has everything you need.


The parts of the Hammerfall DSP System can be combined freely. Therefore the Digiface can be used with notebooks as well as desktop computers. The connection to notebooks is achieved via a CardBus interface, the connection to desktops via a PCI interface. The interfaces are sold separately.


Settings Dialog

Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the Digiface comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode, sample rate and time code make your work with Hammerfall DSP System to a real pleasure. With a simple mouse click you gain access to the full power of your system.

When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's exclusive SyncCheck checks all input signals and displays their actual state, and thanks to our new Intelligent Clock Control concept you have all clocks and states under control - with ease.

A display of the time code at the ADAT Sync-In port offers a quick check of the communication between external device and Hammerfall.


Technical Specifications and Features


Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, variable

8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms

ASIO zero CPU load technology: 0 (zero!)% CPU load when using ALL 52 channels!

All settings changeable in realtime

Clock modes slave and master

Automatic and intelligent master/slave clock control

Enhanced Mixed mode: All inputs and outputs simultaneously operational

Unsurpassed Bitclock PLL (audio synchronisation) in ADATŽ mode

Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring

Comes with DIGICheck: the ultimate measurement, analysis and test tool

Input 3 x optical (TOSLINK), 1 x coaxial (Cinch), 2 x MIDI, word clock (BNC)

Input format SPDIF, AES/EBU (Consumer, Professional), ADATŽ optical

Output 3 x optical (TOSLINK), coaxial (Cinch), 2 x MIDI, stereo analog line (1/4" TRS), word clock (BNC)

Format output SPDIF, AES/EBU (Consumer/Professional), ADATŽ optical

Unique Technologies in Hammerfall DSP

AutoSync: Intelligent clock control according to operational mode and present/desired sample rate.

Bitclock PLL: The most reliable receiver circuit for ADAT optical signal.

Enhanced ZLMŽ: Monitoring of the input signal, independent from clock mode and sample rate.

DIGICheck DSP: Professional status and level display at lowest CPU load.

Intelligent Clock Control: Measurement and display of all incoming and used clocks.

Latency Fast Change: Change latency on-the-fly under ASIO, without manual reset or re-boot.

SyncAlignŽ: Surveillance and sample accurate synchronization of all channels.

SyncCheckŽ: Comparison and display of all input clock status.

TotalMix: Mixes all inputs and all outputs on all outputs. Several independant submixes possible.

Zero Latency Monitoring (ZLMŽ): Automatic monitoring of the input signal with zero latency.


cijena: 5833,33 kn
