Exceptional performance for exceptional performers
Exacting detail, brilliant clarity and uncolored realism
Well-tempered polar pattern with outstanding rejection qualities
Superior anti-shock engineering ensures low handling noise and quiet performance
Excellent protection against plosives and sibilance without compromising high-frequency clarity
Robust design for enduring dependability on the road
Integral 80 Hz HPF switch and 10 dB pad

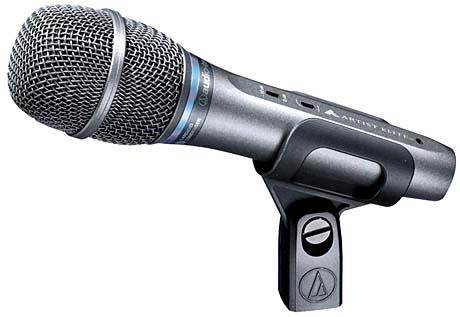

AE3300 Specifications
Element Signal to Noise Ratio
Condenser
75 dB, 1 kHz at 1 Pa

Polar Pattern Dynamic Range (Typical)
Cardioid
128 dB, 1 kHz at Max. SPL

Frequency Response Phantom Power Requirements
30 - 18,000 Hz
11-52V, 3 mA typical

Open Circuit Sensitivity Switches
-42 dB (7.9 mV) re 1V at 1 Pa
10 dB pad; roll-off

Impedance Low Frequency Roll-off
150 ohms
80 Hz, 12 dB per octave

Maximum Input Sound Level Weight
147 dB SPL, 1 kHz at 1% T.H.D.
10.6 oz (300 g)

Noise Output Connector
19 dB SPL
Integral 3-pin XLRM-type

Accessories Furnished:
AT8470 Quiet-Flex™ stand clamp; 3/8"-16 threaded adapter; protective pouch
