Large diaphragm for exceptional detail and low noise
High max SPL, wide dynamic range and optimized output level provide unmatched versatility
Low self-noise (12 dB SPL) – perfectly suited for today's most sophisticated digital recording equipment
Extended low-frequency response for rich, full sound
Custom shock mount provides superior isolation
Lo-cut switch (80 Hz, 12 dB/octave) and 10 dB pad

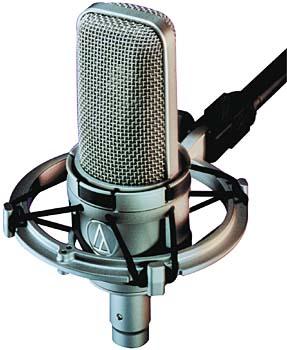

AT3035 Specifications
Element Dynamic Range (Typical)
Condenser
136 dB, 1 kHz at Max. SPL

Polar Pattern Phantom Power Requirements
Cardioid
11 - 52V, 3 mA typical

Frequency Response Switches
20 - 20,000 Hz
10 dB pad; roll-off

Open Circuit Sensitivity Low Frequency Roll-off
-32 dB (25.1 mV) re 1V at 1 Pa
80 Hz, 12 dB per octave

Impedance Weight
250 ohms
13.8 oz (390 g)

Maximum Input Sound Level Output Connector
148 dB SPL, 1 kHz at 1% T.H.D.
Integral 3-pin XLRM-type

Signal to Noise Ratio
82 dB, 1 kHz at 1 Pa

Accessories Furnished:
Shock mount; protective pouch
