Warm classic tube sound
No dedicated power supply or special cable needed; operates exclusively on 48V DC phantom power
Large-diaphragm cardioid condenser element provides high sensitivity and smooth sound reproduction with low noise levels
Hand-selected tubes are individually tested and aged to maintain peak performance
Shock-mounted tube assembly dampens mechanically-coupled vibrations
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Large coupling transformer provides superior low-frequency linearity
State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards

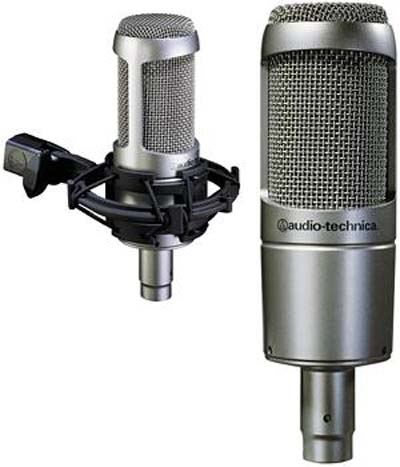

Includes AT8458 shock mount and protective pouch

AT3060 Specifications
Element Signal to Noise Ratio
Condenser
77 dB, 1 kHz at 1 Pa

Polar Pattern Dynamic Range (Typical)
Cardioid
117 dB, 1 kHz at Max. SPL

Frequency Response Phantom Power Requirements
50 - 16,000 Hz
48V, 3 mA typical

Open Circuit Sensitivity Weight
-32 dB (25.1 mV) re 1V at 1 Pa
19.1 oz (540 g)

Impedance Output Connector
400 ohms
Integral 3-pin XLRM-type

Maximum Input Sound Level
134 dB SPL, 1 kHz at 1% T.H.D.

Accessories Furnished:
Shock mount; protective pouch
