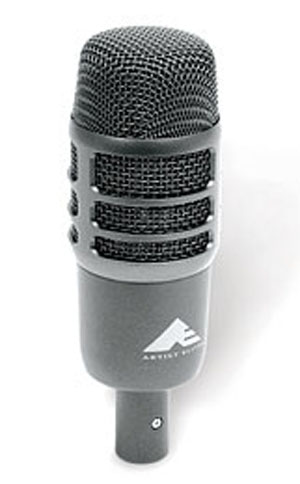

The ultimate kick-drum mic
Revolutionary dual-element design represents a ground-breaking transducer achievement
Two elements (condenser and dynamic) are enclosed in a single housing
Dynamic element delivers the aggressive attack of the beater while the condenser captures the round tonalities of the shell
Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
Robust design for enduring dependability on the road
Integral 80 Hz HPF switch and 10 dB pad on condenser element
Includes a 16.5' (5 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors) for separate control over each element

AE2500 Specifications
Elements Signal to Noise Ratio
Condenser, dynamic
70 dB, 1 kHz at 1 Pa (condenser)

Polar Pattern Dynamic Range (Typical)
Cardioid
124 dB, 1 kHz at Max. SPL (condenser)

Frequency Response Phantom Power Requirements
20 - 17,000 Hz (condenser)
30 - 10,000 (dynamic)
11-52V, 3 mA typical (condenser)

Open Circuit Sensitivity Switches
-51 dB (2.8 mV) re 1V at 1 Pa (condenser)
-54 dB (1.9 mV) re 1V at 1 Pa (dynamic)
10 dB pad; roll-off (condenser)

Impedance Low Frequency Roll-off
100 ohms (condenser)
600 ohms (dynamic)
80 Hz, 12 dB per octave (condenser)

Maximum Input Sound Level Weight
148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
13.8 oz (390 g)

Output Connector

Integral 5-pin XLRM-type

Accessories Furnished:
AT8471 isolation clamp; 3/8"-16 threaded adapter; protective pouch
